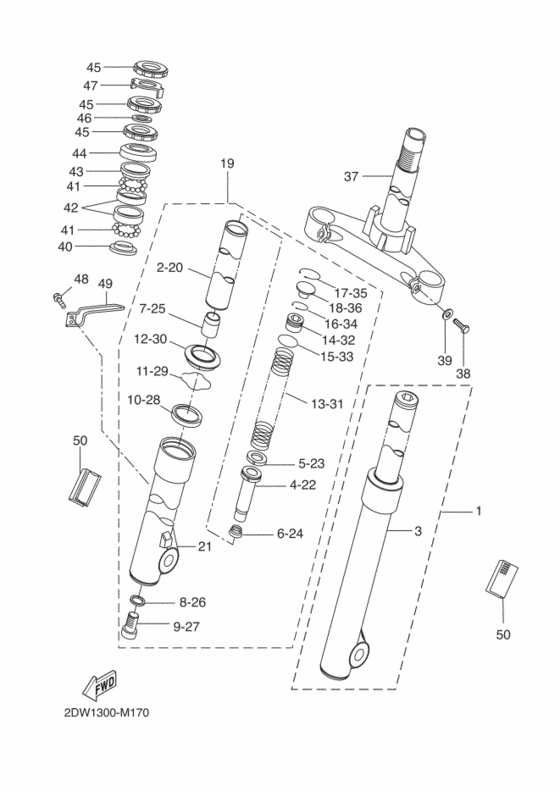

Front fork Diagram Yamaha CW50 BW'S
- Year
- 2013
- Colour
- Black Metallic 1M (SM1M; 1306)
- Model code
- 2DW1
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CW50E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DW-F3102-00-00
Front Fork Assy (L.h)
|
2DW-F3102-00-00 |
— | ||
|
2
|
2
2DW-F3110-00-00
Inner Tube Comp.1
|
2DW-F3110-00-00 |
— | ||
|
3
|
3
2DW-F3126-00-00
Tube, Outer (L.h)
|
2DW-F3126-00-00 |
— | ||
|
4
|
4
1WP-F3170-00-00
Cylinder Comp., Front Fork
|
1WP-F3170-00-00 |
— | ||
|
5
|
5
5ME-F3157-30-00
Ring, Piston
(KAIFA) |
5ME-F3157-30-00 |
— | ||
|
6
|
6
5ME-F2169-30-00
Spring, Tensioner
(KAIFA) |
5ME-F2169-30-00 |
— | ||
|
7
|
7
5ME-F3166-30-00
Spacer, Oil Lock
(KAIFA) |
5ME-F3166-30-00 |
— | ||
|
8
|
8
5ME-F3165-30-00
Washer, Felt
(KAIFA) |
5ME-F3165-30-00 |
— | ||
|
9
|
9
5ME-F3181-30-00
Bolt, Hexagon Socket Head
(KAIFA) |
5ME-F3181-30-00 |
— | ||
|
10
|
10
5ME-F3145-30-00 Oil Seal(KAIFA) |
5ME-F3145-30-00 |
US $13.48 |
||
|
11
|
11
5ME-F3156-30-00
Ring, Snap
(KAIFA) |
5ME-F3156-30-00 |
— | ||
|
12
|
12
5ME-F3144-30-00
Seal, Dust
(KAIFA) |
5ME-F3144-30-00 |
— | ||
|
13
|
13
2DW-F3141-00-00
Spring, Front Fork
|
2DW-F3141-00-00 |
— | ||
|
14
|
14
5ME-F3113-30-00
Collar
(KAIFA) |
5ME-F3113-30-00 |
— | ||
|
15
|
15
5ME-F3147-30-00
O-Ring
(KAIFA) |
5ME-F3147-30-00 |
— | ||
|
16
|
16
5ME-F3183-30-00
Circlip
(KAIFA) |
5ME-F3183-30-00 |
— | ||
|
17
|
17
5ME-F387J-30-00
Ring, Stopper
(KAIFA) |
5ME-F387J-30-00 |
— | ||
|
18
|
18
5ME-F3111-30-00
Bolt, Cap
(KAIFA) |
5ME-F3111-30-00 |
— | ||
|
19
|
19
2DW-F3103-00-00
Front Fork Assy (R.h)
|
2DW-F3103-00-00 |
— | ||
|
20
|
20
2DW-F3110-00-00
Inner Tube Comp.1
|
2DW-F3110-00-00 |
— | ||
|
21
|
21
2DW-F3136-00-00
Tube, Outer (R.h)
|
2DW-F3136-00-00 |
— | ||
|
22
|
22
1WP-F3170-00-00
Cylinder Comp., Front Fork
|
1WP-F3170-00-00 |
— | ||
|
23
|
23
5ME-F3157-30-00
Ring, Piston
(KAIFA) |
5ME-F3157-30-00 |
— | ||
|
24
|
24
5ME-F2169-30-00
Spring, Tensioner
(KAIFA) |
5ME-F2169-30-00 |
— | ||
|
25
|
25
5ME-F3166-30-00
Spacer, Oil Lock
(KAIFA) |
5ME-F3166-30-00 |
— | ||
|
26
|
26
5ME-F3165-30-00
Washer, Felt
(KAIFA) |
5ME-F3165-30-00 |
— | ||
|
27
|
27
5ME-F3181-30-00
Bolt, Hexagon Socket Head
(KAIFA) |
5ME-F3181-30-00 |
— | ||
|
28
|
28
5ME-F3145-30-00 Oil Seal(KAIFA) |
5ME-F3145-30-00 |
US $13.48 |
||
|
29
|
29
5ME-F3156-30-00
Ring, Snap
(KAIFA) |
5ME-F3156-30-00 |
— | ||
|
30
|
30
5ME-F3144-30-00
Seal, Dust
(KAIFA) |
5ME-F3144-30-00 |
— | ||
|
31
|
31
2DW-F3141-00-00
Spring, Front Fork
|
2DW-F3141-00-00 |
— | ||
|
32
|
32
5ME-F3113-30-00
Collar
(KAIFA) |
5ME-F3113-30-00 |
— | ||
|
33
|
33
5ME-F3147-30-00
O-Ring
(KAIFA) |
5ME-F3147-30-00 |
— | ||
|
34
|
34
5ME-F3183-30-00
Circlip
(KAIFA) |
5ME-F3183-30-00 |
— | ||
|
35
|
35
5ME-F387J-30-00
Ring, Stopper
(KAIFA) |
5ME-F387J-30-00 |
— | ||
|
36
|
36
5ME-F3111-30-00
Bolt, Cap
(KAIFA) |
5ME-F3111-30-00 |
— | ||
|
37
|
37
1WP-F3340-00-00
Under Bracket Comp
|
1WP-F3340-00-00 |
— | ||
|
38
|
38
5ME-F3394-30-00
Bolt, Special
(KAIFA) |
5ME-F3394-30-00 |
— | ||
|
39
|
39
5ME-F3112-30-00
Washer, Cap
(KAIFA) |
5ME-F3112-30-00 |
— | ||
|
40
|
40
5C2-F3414-00-00
Race, Ball 4
|
5C2-F3414-00-00 |
— | ||
| replacements | |||||
|
40
|
40
22F-23414-01-00 Race, Ball 4 |
22F-23414-01-00 |
from US $8.22 |
||
|
40
|
40
BP2-23414-00-00 Race, Ball |
BP2-23414-00-00 |
from US $7.45 |
||
|
41
|
41
22F-2341E-00-00 Retainer, Ball Bearing |
22F-2341E-00-00 |
from US $14.14 |
||
| replacement | |||||
|
41
|
41
BP2-2341E-00-00 Retainer, Ball Bearing |
BP2-2341E-00-00 |
from US $14.14 |
||
|
42
|
42
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
42
|
42
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
43
|
43
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
43
|
43
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
44
|
44
3VP-23416-00-00 Cover, Ball Race 2 |
3VP-23416-00-00 |
US $2.83 |
||
|
45
|
45
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
46
|
46
90202-26X00-00 Washer, Plate |
90202-26X00-00 |
US $1.84 |
||
|
47
|
47
5DS-F3418-00-00 Washer, Special |
5DS-F3418-00-00 |
US $5.38 |
||
|
48
|
48
2DW-F3317-00-00
Holder, Cable
|
2DW-F3317-00-00 |
— | ||
|
49
|
49
9580M-06012-00 Bolt, Flange |
9580M-06012-00 |
from US $0.81 |
||
| replacement | |||||
|
49
|
49
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
50
|
50
5HE-H5111-00-00 Reflector, Front 1 |
5HE-H5111-00-00 |
US $18.99 |
||
