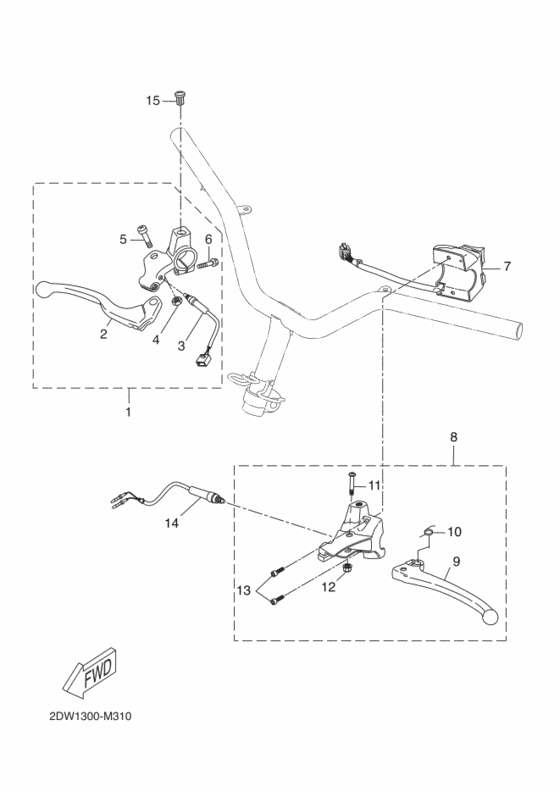

Handle switch & lever Diagram Yamaha CW50 BW'S
- Year
- 2013
- Colour
- Black Metallic 1M (SM1M; 1306)
- Model code
- 2DW1
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CW50E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2DW-H2920-00-00
Lever Holder Assy (Right)
|
2DW-H2920-00-00 |
— | ||
|
2
|
2
2DW-H3922-00-00
Lever 2
|
2DW-H3922-00-00 |
— | ||
|
3
|
3
2DW-H3980-00-00
Front Stop Switch Assy
|
2DW-H3980-00-00 |
— | ||
|
4
|
4
95607-05100-00 Nut, U |
95607-05100-00 |
from US $2.22 |
||
| replacement | |||||
|
4
|
4
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
5
|
5
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
5
|
5
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
6
|
6
3XG-H3915-00-00 Screw, Lever Fitting |
3XG-H3915-00-00 |
from US $2.08 |
||
|
7
|
7
5JH-H3976-20-00
Switch, Handle 1
|
5JH-H3976-20-00 |
— | ||
|
8
|
8
5WW-H2910-10-00
Lever Holder Assy (Left)
|
5WW-H2910-10-00 |
— | ||
|
9
|
9
5JH-H3912-10-00 Lever 1 |
5JH-H3912-10-00 |
US $20.69 |
||
|
10
|
10
5WW-H3962-10-00
Spring
|
5WW-H3962-10-00 |
— | ||
|
11
|
11
5WW-H3915-10-00
Screw, Lever Fitting
|
5WW-H3915-10-00 |
— | ||
|
12
|
12
5WW-H3916-10-00
Nut, Lever Fitting
|
5WW-H3916-10-00 |
— | ||
|
13
|
13
5WW-H3945-10-00
Bolt, Lever
|
5WW-H3945-10-00 |
— | ||
|
14
|
14
5JH-H3980-02-00 Front Stop Switch Assy |
5JH-H3980-02-00 |
US $27.77 |
||
| replacement | |||||
|
14
|
14
5JH-H3980-30-00 Front Stop Switch Assy |
5JH-H3980-30-00 |
from US $27.77 |
||
|
15
|
15
5WW-H399M-00-00
Cap
|
5WW-H399M-00-00 |
— | ||
