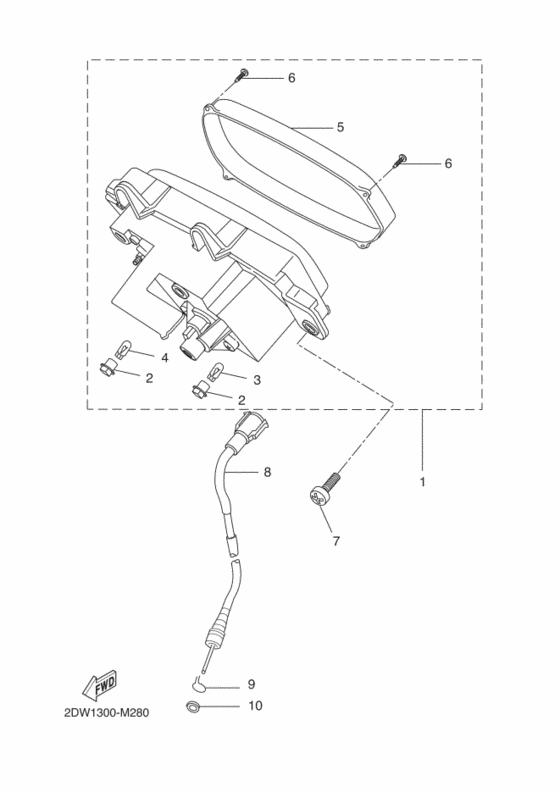

Meter Diagram Yamaha CW50 BW'S
- Year
- 2013
- Colour
- Black Metallic 1M (SM1M; 1306)
- Model code
- 2DW1
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CW50E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5WW-H3510-81-00
Speedometer Assy
UR ( mph Pricol ) |
5WW-H3510-81-00 |
— | ||
|
2
|
2
5BR-H3534-00-00
Socket. Wire Harness
|
5BR-H3534-00-00 |
— | ||
|
3
|
3
NJ9-H4744-00-01
Bulb (12V-1.2W)
12V-1.2W |
NJ9-H4744-00-01 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
12V-1.2W |
999-99999-99-00 |
— | ||
|
4
|
4
4SB-H4347-00-00 BulbBulb (12v-2w) 12V-2W |
4SB-H4347-00-00 |
US $6.66 |
||
|
5
|
5
5WW-H3511-00-00
Lens, Speedometer
|
5WW-H3511-00-00 |
— | ||
|
6
|
6
5WW-H3616-00-00
Screw, Tapping
|
5WW-H3616-00-00 |
— | ||
|
7
|
7
901-6705X-07-00
Screw, Tapping
|
901-6705X-07-00 |
— | ||
|
8
|
8
2DW-H3550-00-00
Speedometer Cable Assy
|
2DW-H3550-00-00 |
— | ||
|
9
|
9
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
10
|
10
932-10148-05-00
O-Ring
|
932-10148-05-00 |
— | ||
| replacement | |||||
|
10
|
10
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.52 |
||
