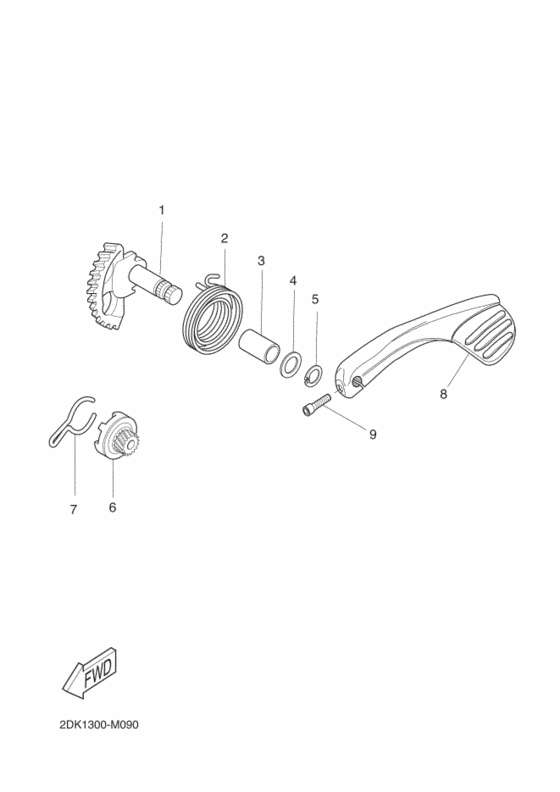

Starter Diagram Yamaha CW50 BW'S
- Year
- 2013
- Colour
- Black Metallic 1M (SM1M; 1306)
- Model code
- 2DW1
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CW50E
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5AD-E5601-00-00
Kick Shaft Assy
|
5AD-E5601-00-00 |
— | ||
|
2
|
2
905-08326-09-00 Spring, Torsion (32N) |
905-08326-09-00 |
from US $8.08 |
||
|
3
|
3
90380-15X00-00 Bush, Solid |
90380-15X00-00 |
from US $1.62 |
||
| replacement | |||||
|
3
|
3
90380-15817-00 Bush, Solid |
90380-15817-00 |
from US $4.25 |
||
|
4
|
4
90201-155G5-00 Washer, Plate |
90201-155G5-00 |
from US $2.55 |
||
| replacement | |||||
|
4
|
4
90201-154E9-00 Washer, Plate (5G3) |
90201-154E9-00 |
from US $2.77 |
||
|
5
|
5
93410-14X00-00
Circlip
|
93410-14X00-00 |
— | ||
| replacement | |||||
|
5
|
5
934-1014X-01-00
Circlip
|
934-1014X-01-00 |
— | ||
|
6
|
6
4SB-E5631-00-00 Gear, Kick Pinion |
4SB-E5631-00-00 |
from US $72.67 |
||
| replacement | |||||
|
6
|
6
2AD-E5631-00-00 Gear, Kick Pinion |
2AD-E5631-00-00 |
US $61.83 |
||
|
7
|
7
3VL-E5673-00-00 Clip |
3VL-E5673-00-00 |
from US $7.93 |
||
|
8
|
8
5FX-E5620-20-00 Kick Crank Assy(SILVER) |
5FX-E5620-20-00 |
US $90.91 |
||
|
9
|
9
90110-06X16-00 Bolt, Hexagon Socket Head |
90110-06X16-00 |
US $9.07 |
||
