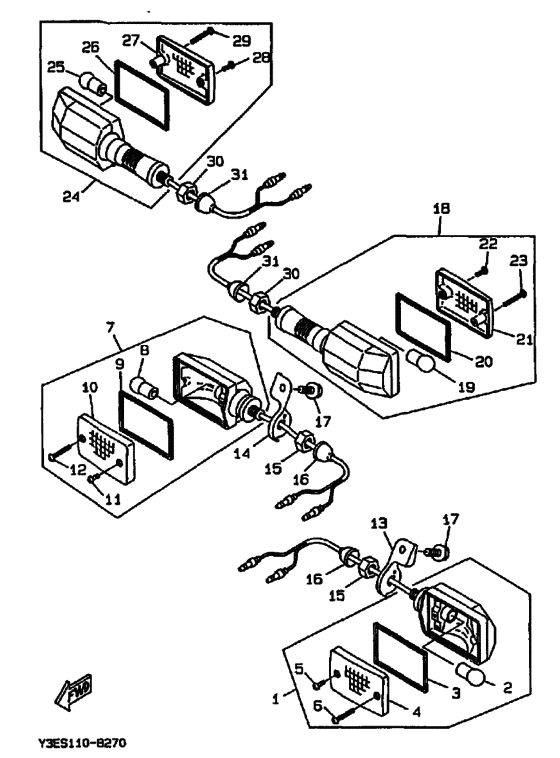

Flasher light Diagram Yamaha CW50 ZUMA
- Year
- 1990
- Colour
- Mature Red (MRE; 00FE)
- Model code
- 3MX2
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CW50T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3ES-83310-00-00 Frt Flshr Lite Asy |
3ES-83310-00-00 |
from US $73.92 |
||
| replacement | |||||
|
1
|
1
3TX-83310-00-00 Front Flasher Light Assy 1 |
3TX-83310-00-00 |
from US $46.31 |
||
|
2
|
2
851-84744-00-00 Bulb12V-10W |
851-84744-00-00 |
US $4.82 |
||
| replacement | |||||
|
2
|
2
3NS-83331-00-00 Bulb12V-10W |
3NS-83331-00-00 |
from US $4.82 |
||
|
3
|
3
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
4
|
4
34N-83312-00-00
Lens, Flasher
|
34N-83312-00-00 |
— | ||
|
5
|
5
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
6
|
6
97702-40630-00 Screw, Tapping |
97702-40630-00 |
from US $2.13 |
||
| replacement | |||||
|
6
|
6
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
7
|
7
3ES-83320-00-00 Frt Flshr Lite Asy |
3ES-83320-00-00 |
from US $73.92 |
||
| replacement | |||||
|
7
|
7
3TX-83310-00-00 Front Flasher Light Assy 1 |
3TX-83310-00-00 |
from US $46.31 |
||
|
8
|
8
851-84744-00-00 Bulb12V-10W |
851-84744-00-00 |
US $4.82 |
||
| replacement | |||||
|
8
|
8
3NS-83331-00-00 Bulb12V-10W |
3NS-83331-00-00 |
from US $4.82 |
||
|
9
|
9
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
10
|
10
34N-83312-00-00
Lens, Flasher
|
34N-83312-00-00 |
— | ||
|
11
|
11
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
12
|
12
97702-40630-00 Screw, Tapping |
97702-40630-00 |
from US $2.13 |
||
| replacement | |||||
|
12
|
12
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
13
|
13
3ES-83318-00-00
Stay, Flasher 1
|
3ES-83318-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
3ES-83328-00-00
Stay, Flasher 2
|
3ES-83328-00-00 |
— | ||
|
15
|
15
95303-12600-00 Nut |
95303-12600-00 |
from US $2.13 |
||
| replacement | |||||
|
15
|
15
95304-12600-00 Nut |
95304-12600-00 |
from US $2.13 |
||
|
16
|
16
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
16
|
16
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
17
|
17
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
18
|
18
3ES-83330-00-00 Frt Flshr Lite Assemblylight As |
3ES-83330-00-00 |
US $79.79 |
||
| replacement | |||||
|
18
|
18
34N-83310-20-00 Frt Flshr Lite Assemblylight As |
34N-83310-20-00 |
US $79.79 |
||
|
19
|
19
851-84744-00-00 Bulb12V-10W |
851-84744-00-00 |
US $4.82 |
||
| replacement | |||||
|
19
|
19
3NS-83331-00-00 Bulb12V-10W |
3NS-83331-00-00 |
from US $4.82 |
||
|
20
|
20
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
21
|
21
34N-83312-00-00
Lens, Flasher
|
34N-83312-00-00 |
— | ||
|
22
|
22
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
23
|
23
97702-40630-00 Screw, Tapping |
97702-40630-00 |
from US $2.13 |
||
| replacement | |||||
|
23
|
23
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
24
|
24
3ES-83340-00-00 Rear Flasher Light Assy 2 |
3ES-83340-00-00 |
US $79.79 |
||
| replacement | |||||
|
24
|
24
34N-83310-20-00 Frt Flshr Lite Assemblylight As |
34N-83310-20-00 |
US $79.79 |
||
|
25
|
25
851-84744-00-00 Bulb12V-10W |
851-84744-00-00 |
US $4.82 |
||
| replacement | |||||
|
25
|
25
3NS-83331-00-00 Bulb12V-10W |
3NS-83331-00-00 |
from US $4.82 |
||
|
26
|
26
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
27
|
27
34N-83312-00-00
Lens, Flasher
|
34N-83312-00-00 |
— | ||
|
28
|
28
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
29
|
29
97702-40630-00 Screw, Tapping |
97702-40630-00 |
from US $2.13 |
||
| replacement | |||||
|
29
|
29
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
30
|
30
95303-12600-00 Nut |
95303-12600-00 |
from US $2.13 |
||
| replacement | |||||
|
30
|
30
95304-12600-00 Nut |
95304-12600-00 |
from US $2.13 |
||
|
31
|
31
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
31
|
31
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
