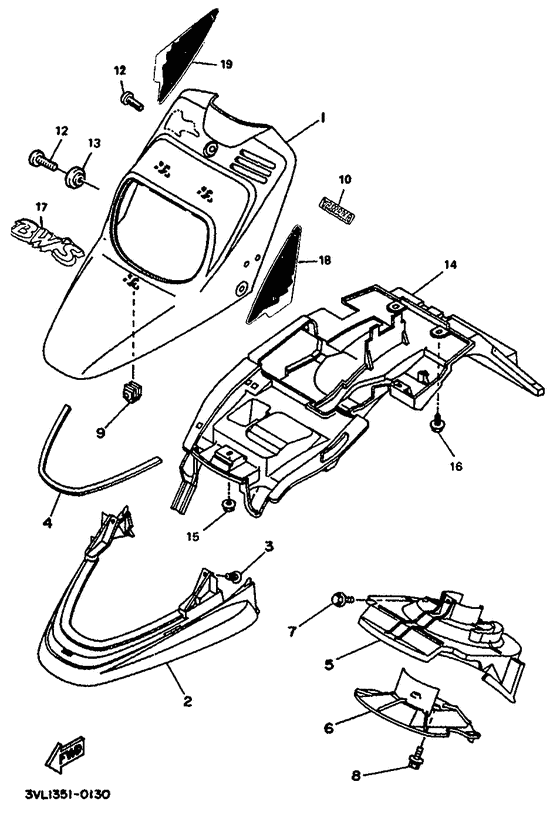

Fender Diagram Yamaha CW50 BW'S
- Year
- 1994
- Colour
- Black 2 (BL2; 004B)
- Model code
- 3WV5
- Sales region
- Portugal (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-F1511-00-11
Fender, Front
Black |
3VL-F1511-00-11 |
— | ||
|
01
|
01
3VL-F1511-00-PC
Fender, Front
Dull violet metalic 5 |
3VL-F1511-00-PC |
— | ||
|
01
|
01
3VL-F1511-00-PD
Fender, Front
Deep yellows green metal |
3VL-F1511-00-PD |
— | ||
|
02
|
02
3VL-F1551-10-00
Over, Fender
Black |
3VL-F1551-10-00 |
— | ||
|
03
|
03
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
03
|
03
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
03
|
03
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
04
|
04
3VL-F7482-00-00 Mole, FootrestBlack |
3VL-F7482-00-00 |
US $13.01 |
||
| replacement | |||||
|
04
|
04
3VL-F7482-10-00 Mold, FootrestBlack |
3VL-F7482-10-00 |
US $13.01 |
||
|
05
|
05
3VL-F1552-00-00
Fender, Inner
Black |
3VL-F1552-00-00 |
— | ||
| replacement | |||||
|
05
|
05
3VL-F1552-01-00 Fender, InnerBlack |
3VL-F1552-01-00 |
US $34.04 |
||
|
06
|
06
3VL-F1553-00-00
Fender, Inner 2
Black |
3VL-F1553-00-00 |
— | ||
|
07
|
07
95801-08010-00
Bolt, Flange
|
95801-08010-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
90119-08085-00 Bolt, With Washer |
90119-08085-00 |
from US $7.08 |
||
|
09
|
09
3SR-26294-00-00
Nut 1
|
3SR-26294-00-00 |
— | ||
|
10
|
10
3WV-F1565-00-00
Emblem 2
For 3 models |
3WV-F1565-00-00 |
— | ||
|
12
|
12
90154-06009-00 Screw, Binding |
90154-06009-00 |
from US $2.69 |
||
|
13
|
13
3VL-F1545-00-00 Plate 3 |
3VL-F1545-00-00 |
US $3.78 |
||
|
14
|
14
3VL-F1629-00-00 Guard, Mud |
3VL-F1629-00-00 |
US $149.83 |
||
| replacement | |||||
|
14
|
14
3VL-F1629-01-00 Guard,mud (Noir) |
3VL-F1629-01-00 |
US $149.83 |
||
|
15
|
15
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
16
|
16
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
17
|
17
4LJ-F1599-00-00
Graphic 3
For 3 models |
4LJ-F1599-00-00 |
— | ||
|
18
|
18
3WV-F1569-00-00
Graphic 1
For dvm5 only |
3WV-F1569-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
For dvm5 only |
999-99999-99-00 |
— | ||
|
19
|
19
3WV-F1579-00-00
Graphic 2
For dvm5 only |
3WV-F1579-00-00 |
— | ||
