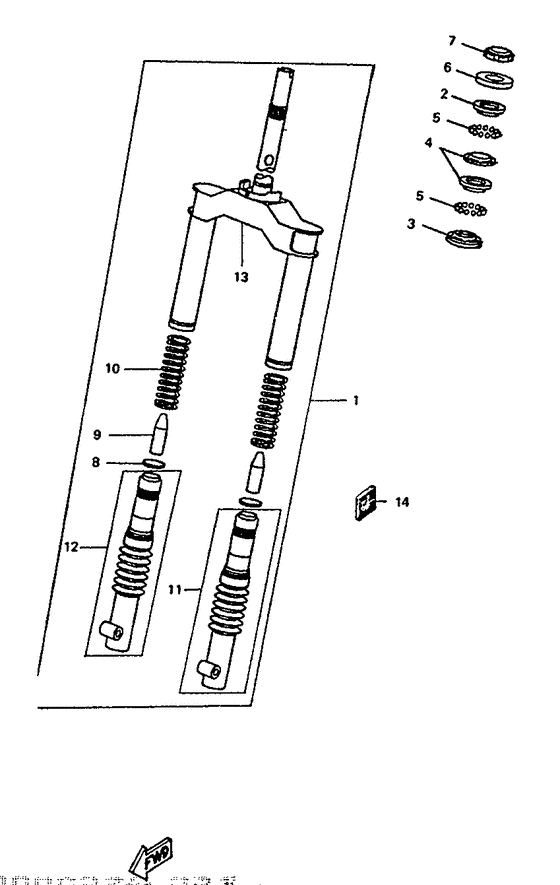

Front fork Diagram Yamaha CW50 BW'S
- Year
- 1994
- Colour
- Black 2 (BL2; 004B)
- Model code
- 3WV5
- Sales region
- Portugal (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-F3100-20-00
Front Fork Assy
|
3VL-F3100-20-00 |
— | ||
| replacement | |||||
|
01
|
01
4UY-F3100-20-00
Front Fork Assembly
|
4UY-F3100-20-00 |
— | ||
|
02
|
02
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $8.78 |
||
| replacement | |||||
|
02
|
02
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $6.40 |
||
|
03
|
03
22F-23414-01-00 Race, Ball 4 |
22F-23414-01-00 |
from US $8.22 |
||
| replacement | |||||
|
03
|
03
BP2-23414-00-00 Race, Ball |
BP2-23414-00-00 |
US $20.02 |
||
|
04
|
04
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $7.93 |
||
| replacement | |||||
|
04
|
04
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $7.93 |
||
|
05
|
05
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
05
|
05
93503-16003-00 Ball |
93503-16003-00 |
from US $1.35 |
||
|
06
|
06
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
07
|
07
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
07
|
07
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
07
|
07
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
08
|
08
3VL-F3143-00-00
Rubber
|
3VL-F3143-00-00 |
— | ||
|
09
|
09
3VL-F3195-00-00
Spring Front Fork
|
3VL-F3195-00-00 |
— | ||
|
10
|
10
3VL-F3141-00-00 Spring, Front Fork |
3VL-F3141-00-00 |
US $13.23 |
||
|
11
|
11
3VL-F3120-00-00 Inner Tube Comp. (Right) |
3VL-F3120-00-00 |
US $130.12 |
||
|
12
|
12
3VL-F3110-00-00 Inner Tube Comp. (Left)Inner tube comp.1 |
3VL-F3110-00-00 |
US $123.82 |
||
|
13
|
13
3VL-F3340-20-00
Under Bracket Comp
|
3VL-F3340-20-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
3VL-H5111-00-00
Reflector, Front 1
|
3VL-H5111-00-00 |
— | ||
