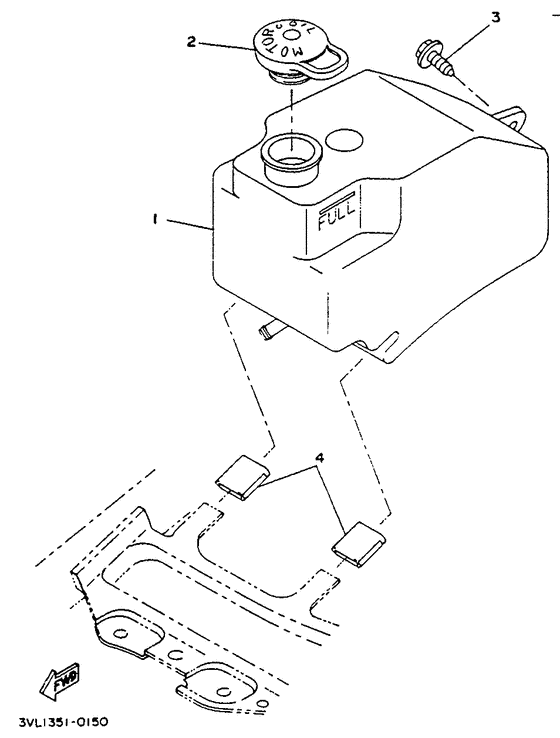

Oltank Diagram Yamaha CW50 BW'S
- Year
- 1995
- Colour
- Blue Metallic 9 (BM9; 0448)
- Model code
- 4BX6
- Sales region
- Germany (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-F1751-00-00
Tank, Oil
|
3VL-F1751-00-00 |
— | ||
|
02
|
02
2N3-21771-01-00 Body, Cap |
2N3-21771-01-00 |
from US $14.65 |
||
| replacements | |||||
|
02
|
02
3WG-F1771-00-00
Body, Cap
|
3WG-F1771-00-00 |
— | ||
|
02
|
02
2N3-21771-02-00 BODY, CAP |
2N3-21771-02-00 |
from US $15.68 |
||
|
03
|
03
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
03
|
03
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
04
|
04
2E9-24182-00-00 Damper, Locating 2 |
2E9-24182-00-00 |
from US $3.40 |
||
