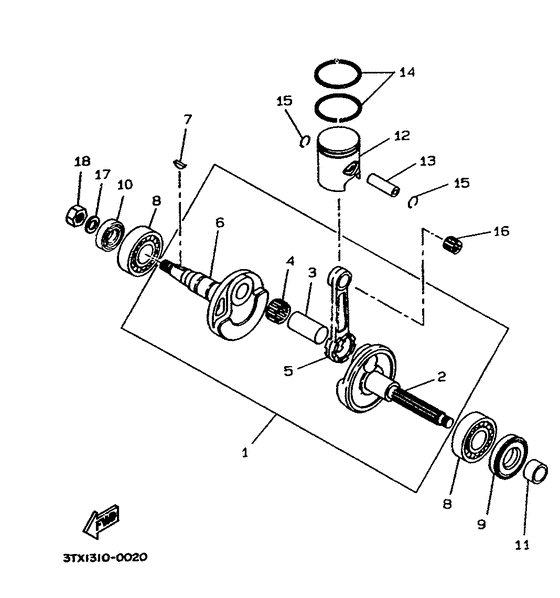

Crankshaft & Piston Diagram Yamaha CW50 BW'S
- Year
- 1991
- Colour
- Silky White (SW; 00GE)
- Model code
- 4CA2
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AA-11400-00-00 Crankshaft Assy |
3AA-11400-00-00 |
from US $250.42 |
||
| replacement | |||||
|
01
|
01
3AA-11400-01-00 Crankshaft Assy |
3AA-11400-01-00 |
from US $213.37 |
||
|
02
|
02
3AA-11412-00-00 Crank 1 |
3AA-11412-00-00 |
from US $75.38 |
||
| replacements | |||||
|
02
|
02
3AA-11412-01-00 Crank 1 |
3AA-11412-01-00 |
from US $82.62 |
||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
1YU-11681-00-00 Pin, Crank 1 |
1YU-11681-00-00 |
from US $25.36 |
||
|
04
|
04
933-10416-F7-00
Bearing
|
933-10416-F7-00 |
— | ||
| replacement | |||||
|
04
|
04
93310-416N7-00 Bearing |
93310-416N7-00 |
from US $12.18 |
||
|
05
|
05
2E9-11651-00-00 Rod, Connecting |
2E9-11651-00-00 |
from US $70.32 |
||
|
06
|
06
3AA-11422-00-00 Crank 2 |
3AA-11422-00-00 |
from US $36.95 |
||
| replacements | |||||
|
06
|
06
3AA-11422-01-00 Crank 2 |
3AA-11422-01-00 |
US $97.24 |
||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
08
|
08
93306-20465-00 Bearing |
93306-20465-00 |
from US $21.96 |
||
| replacement | |||||
|
08
|
08
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
09
|
09
93102-20425-00 Oil Seal |
93102-20425-00 |
from US $6.53 |
||
| replacement | |||||
|
09
|
09
93102-20371-00 Oil Seal(1Yu) |
93102-20371-00 |
from US $8.05 |
||
|
10
|
10
93101-20138-00 Oil Seal |
93101-20138-00 |
from US $5.06 |
||
|
11
|
11
90387-156U0-00 Collar |
90387-156U0-00 |
from US $8.22 |
||
|
12
|
12
3CP-11631-00-96 Piston (Std) |
3CP-11631-00-96 |
from US $59.82 |
||
|
12
|
12
3CP-11636-00-00 Piston (0.50Mm Os) |
3CP-11636-00-00 |
US $58.01 |
||
| replacement | |||||
|
12
|
12
3CP-11636-09-00 Piston (0.50Mm O/s) |
3CP-11636-09-00 |
US $49.84 |
||
|
13
|
13
27V-11633-00-00 Pin, Piston |
27V-11633-00-00 |
from US $10.39 |
||
|
14
|
14
260-11601-02-00 Piston Ring Set (Std) |
260-11601-02-00 |
from US $50.70 |
||
|
14
|
14
260-11601-22-00 Piston Ring Set (0.50Mm Os) |
260-11601-22-00 |
from US $50.70 |
||
|
15
|
15
93450-11120-00 Circlip |
93450-11120-00 |
from US $1.81 |
||
|
16
|
16
93310-210M0-00 Bearing |
93310-210M0-00 |
from US $11.46 |
||
|
17
|
17
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
18
|
18
901-70102-19-00
Nut
|
901-70102-19-00 |
— | ||
| replacement | |||||
|
18
|
18
90170-10011-00 Nut |
90170-10011-00 |
from US $1.52 |
||
