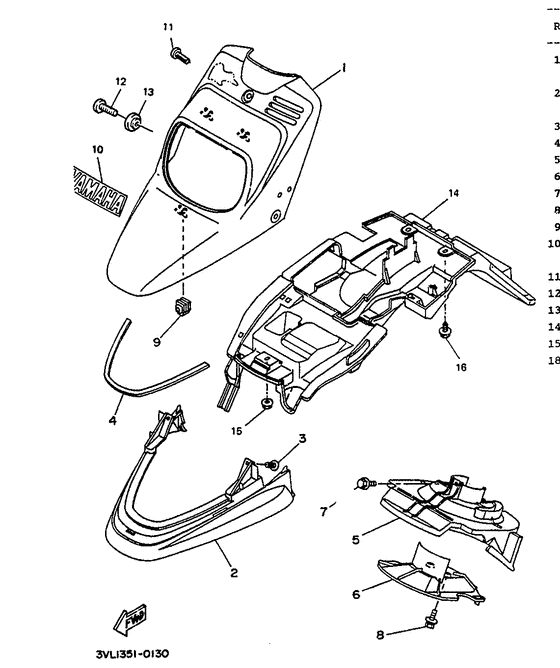

Fender Diagram Yamaha CW50 BW'S
- Year
- 1991
- Colour
- Silky White (SW; 00GE)
- Model code
- 4CA2
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-F1511-00-11
Fender, Front
|
3VL-F1511-00-11 |
— | ||
|
01
|
01
3VL-F1511-00-12
Fender, Front
|
3VL-F1511-00-12 |
— | ||
| replacement | |||||
|
01
|
01
3VL-F1511-00-GE
Fender, Front Sw
|
3VL-F1511-00-GE |
— | ||
|
02
|
02
3VL-F1551-10-00
Over, Fender
For black 2 |
3VL-F1551-10-00 |
— | ||
|
02
|
02
3VL-F1551-20-00
Fender, Over
For silky white |
3VL-F1551-20-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
For silky white |
999-99999-99-00 |
— | ||
|
03
|
03
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
03
|
03
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
03
|
03
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
04
|
04
3VL-F7482-00-00 Mole, Footrest |
3VL-F7482-00-00 |
US $13.01 |
||
| replacement | |||||
|
04
|
04
3VL-F7482-10-00 Mold, Footrest |
3VL-F7482-10-00 |
US $13.01 |
||
|
05
|
05
3VL-F1552-00-00
Fender, Inner
|
3VL-F1552-00-00 |
— | ||
| replacement | |||||
|
05
|
05
3VL-F1552-01-00 Fender, Inner |
3VL-F1552-01-00 |
US $34.04 |
||
|
06
|
06
3VL-F1553-00-00
Fender, Inner 2
|
3VL-F1553-00-00 |
— | ||
|
07
|
07
95801-06010-00 Bolt, Flange |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
07
|
07
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
07
|
07
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
08
|
08
90119-06085-00 Bolt, With Washer |
90119-06085-00 |
from US $2.41 |
||
| replacements | |||||
|
08
|
08
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
08
|
08
90119-06123-00 Bolt, With Washer(1Jk) |
90119-06123-00 |
from US $2.41 |
||
|
09
|
09
35R-26294-00-00 Nut 1 |
35R-26294-00-00 |
from US $6.31 |
||
|
10
|
10
3MV-F1578-00-00
Emblem
For black 2 |
3MV-F1578-00-00 |
— | ||
|
10
|
10
3MV-F1578-10-00
Emblem
For silky white |
3MV-F1578-10-00 |
— | ||
|
11
|
11
90159-06033-00 Screw, With Washer |
90159-06033-00 |
from US $1.70 |
||
| replacements | |||||
|
11
|
11
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
11
|
11
901-59060-60-00
Screw, With Washer
|
901-59060-60-00 |
— | ||
|
12
|
12
98980-06020-00 Screw, Bind |
98980-06020-00 |
from US $1.42 |
||
|
13
|
13
3VL-F1545-00-00 Plate 3 |
3VL-F1545-00-00 |
US $3.78 |
||
|
14
|
14
3VL-F1629-00-00 Guard, Mud |
3VL-F1629-00-00 |
US $149.83 |
||
| replacement | |||||
|
14
|
14
3VL-F1629-01-00 Guard,mud (Noir) |
3VL-F1629-01-00 |
US $149.83 |
||
|
15
|
15
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
16
|
16
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
