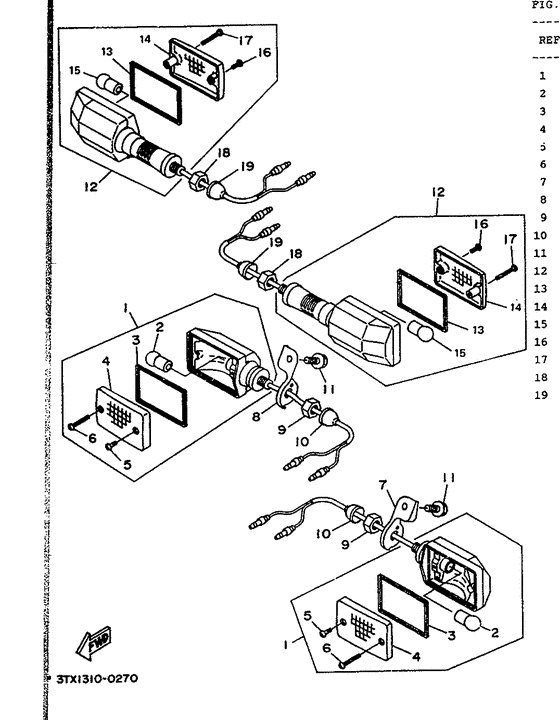

Flasher Diagram Yamaha CW50 BW'S
- Year
- 1991
- Colour
- Silky White (SW; 00GE)
- Model code
- 4CA2
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3TX-83310-00-00 Front Flasher Light Assy 1 |
3TX-83310-00-00 |
from US $46.31 |
||
|
02
|
02
3TX-83311-00-00 Bulb, Flasher (12V-10W) |
3TX-83311-00-00 |
from US $4.82 |
||
| replacements | |||||
|
02
|
02
4GU-H3311-10-00 Bulb, Flasher (10W) |
4GU-H3311-10-00 |
US $5.95 |
||
|
02
|
02
3NS-83331-00-00 Bulb |
3NS-83331-00-00 |
from US $4.82 |
||
|
03
|
03
3Y1-83313-00-00
Gasket, Flasher Lens
|
3Y1-83313-00-00 |
— | ||
|
04
|
04
34N-83312-00-00
Lens, Flasher
|
34N-83312-00-00 |
— | ||
|
05
|
05
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
06
|
06
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
07
|
07
3ES-83318-00-00
Stay, Flasher 1
|
3ES-83318-00-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
08
|
08
3ES-83328-00-00
Stay, Flasher 2
|
3ES-83328-00-00 |
— | ||
|
09
|
09
95303-12600-00 Nut |
95303-12600-00 |
from US $2.13 |
||
| replacement | |||||
|
09
|
09
95304-12600-00 Nut |
95304-12600-00 |
from US $2.13 |
||
|
10
|
10
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
10
|
10
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
11
|
11
95816-08012-00 Bolt, Flange |
95816-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
12
|
12
3TX-83330-00-00
Rear Flasher Light Assy 1
|
3TX-83330-00-00 |
— | ||
|
13
|
13
5Y1-83313-00-00 Gasket, Flasher Lens |
5Y1-83313-00-00 |
from US $4.53 |
||
|
14
|
14
34N-83332-00-00
Lens, Flasher
|
34N-83332-00-00 |
— | ||
|
15
|
15
3TX-83311-00-00 Bulb, Flasher (12V-10W) |
3TX-83311-00-00 |
from US $4.82 |
||
| replacements | |||||
|
15
|
15
4GU-H3311-10-00 Bulb, Flasher (10W) |
4GU-H3311-10-00 |
US $5.95 |
||
|
15
|
15
3NS-83331-00-00 Bulb |
3NS-83331-00-00 |
from US $4.82 |
||
|
16
|
16
985-11040-12-00 Screw, Panhead (4U5) |
985-11040-12-00 |
from US $1.07 |
||
|
17
|
17
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
18
|
18
95303-12600-00 Nut |
95303-12600-00 |
from US $2.13 |
||
| replacement | |||||
|
18
|
18
95304-12600-00 Nut |
95304-12600-00 |
from US $2.13 |
||
|
19
|
19
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
19
|
19
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
