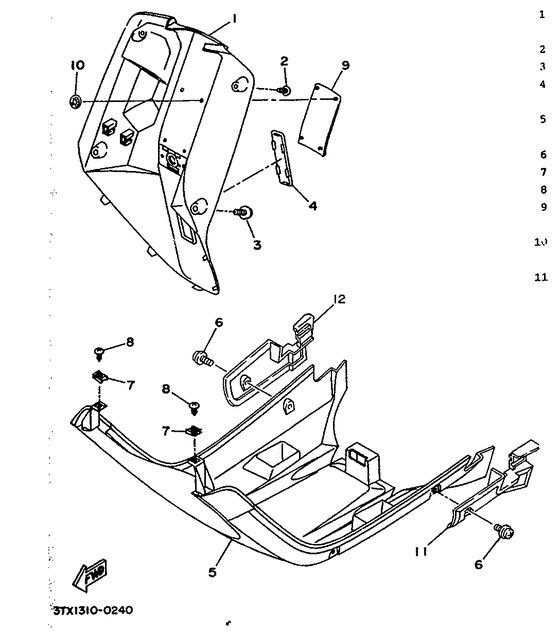

Leg shield Diagram Yamaha CW50 BW'S
- Year
- 1991
- Colour
- Silky White (SW; 00GE)
- Model code
- 4CA2
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-F8311-10-00 Leg Shield 1Leg shield 1 black |
3VL-F8311-10-00 |
US $256.61 |
||
| replacement | |||||
|
01
|
01
3VL-F8311-40-33 Leg Shield Yb |
3VL-F8311-40-33 |
US $256.61 |
||
|
01
|
01
3VL-F8311-20-00
Leg Shield 1
|
3VL-F8311-20-00 |
— | ||
|
02
|
02
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
02
|
02
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
02
|
02
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
03
|
03
90159-06079-00 Screw, With Washer |
90159-06079-00 |
from US $1.70 |
||
| replacement | |||||
|
03
|
03
90159-06182-00 Screw, With Washer(3Yj) |
90159-06182-00 |
from US $1.77 |
||
|
04
|
04
14T-28349-11-00 Cap |
14T-28349-11-00 |
US $7.36 |
||
|
04
|
04
14T-28349-40-00 Cap |
14T-28349-40-00 |
from US $7.37 |
||
| replacement | |||||
|
04
|
04
3WV-F8349-10-00 Cap |
3WV-F8349-10-00 |
from US $8.08 |
||
|
05
|
05
4CA-F8385-10-00 Cover, Under |
4CA-F8385-10-00 |
US $117.38 |
||
|
05
|
05
4CA-F8385-20-00
Cover, Under
|
4CA-F8385-20-00 |
— | ||
|
06
|
06
90159-06079-00 Screw, With Washer |
90159-06079-00 |
from US $1.70 |
||
| replacement | |||||
|
06
|
06
90159-06182-00 Screw, With Washer(3Yj) |
90159-06182-00 |
from US $1.77 |
||
|
07
|
07
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
08
|
08
90167-05041-00 Screw, Truss Head Tapping |
90167-05041-00 |
from US $1.28 |
||
| replacement | |||||
|
08
|
08
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
09
|
09
3VL-F8315-10-00 EmblemFor black 2 |
3VL-F8315-10-00 |
US $4.14 |
||
|
09
|
09
3VL-F8315-20-00
Emblem
For silky white |
3VL-F8315-20-00 |
— | ||
|
10
|
10
3MX-27486-30-00
Cover 1
For silky white |
3MX-27486-30-00 |
— | ||
|
10
|
10
3MX-27486-20-00 Cover 1For black 2 |
3MX-27486-20-00 |
US $42.48 |
||
|
11
|
11
3MX-27487-20-00 Cover 2For black 2 |
3MX-27487-20-00 |
US $42.48 |
||
|
11
|
11
3MX-27487-30-00
Cover 2
For silky white |
3MX-27487-30-00 |
— | ||
