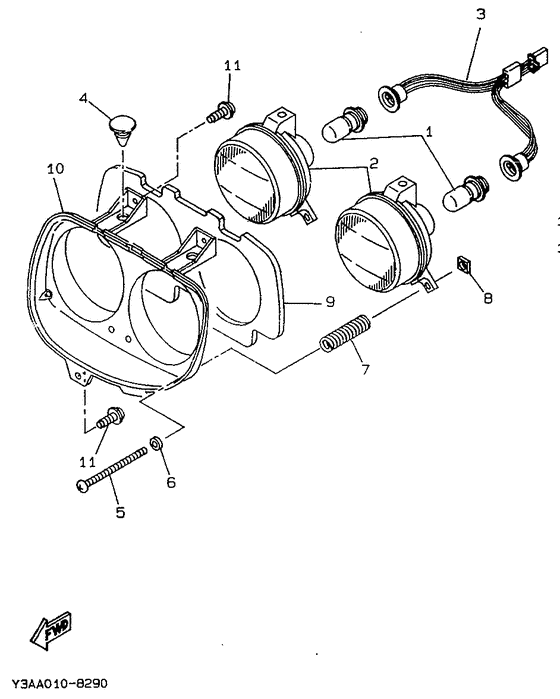

Headlight Diagram Yamaha CW50 BW'S
- Year
- 1992
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4CA3
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AA-84314-00-00
Bulb, Headlight
|
3AA-84314-00-00 |
— | ||
|
02
|
02
3AA-84310-00-00
Headlight Unit Assy
|
3AA-84310-00-00 |
— | ||
|
03
|
03
3AA-84340-00-00
Socket Cord Assy 1
|
3AA-84340-00-00 |
— | ||
|
04
|
04
3AA-84316-00-00
Nut, Body Fitting
|
3AA-84316-00-00 |
— | ||
|
05
|
05
3AA-84331-00-00
Screw, Rim Adjusting
|
3AA-84331-00-00 |
— | ||
|
06
|
06
3AA-84327-00-00 Washer, Special |
3AA-84327-00-00 |
from US $3.97 |
||
|
07
|
07
3AA-84332-00-00 Spring, Screw |
3AA-84332-00-00 |
US $5.71 |
||
|
08
|
08
3AA-84334-00-00
Nut, Adjusting
|
3AA-84334-00-00 |
— | ||
| replacement | |||||
|
08
|
08
21V-84334-00-00
Nut, Adjusting
|
21V-84334-00-00 |
— | ||
|
09
|
09
3AA-84144-00-00 Cover, Headlight |
3AA-84144-00-00 |
from US $8.55 |
||
|
10
|
10
3AA-84196-20-00
Cover, Socket
|
3AA-84196-20-00 |
— | ||
|
11
|
11
90159-05089-00 Screw, With Washer |
90159-05089-00 |
from US $3.54 |
||
