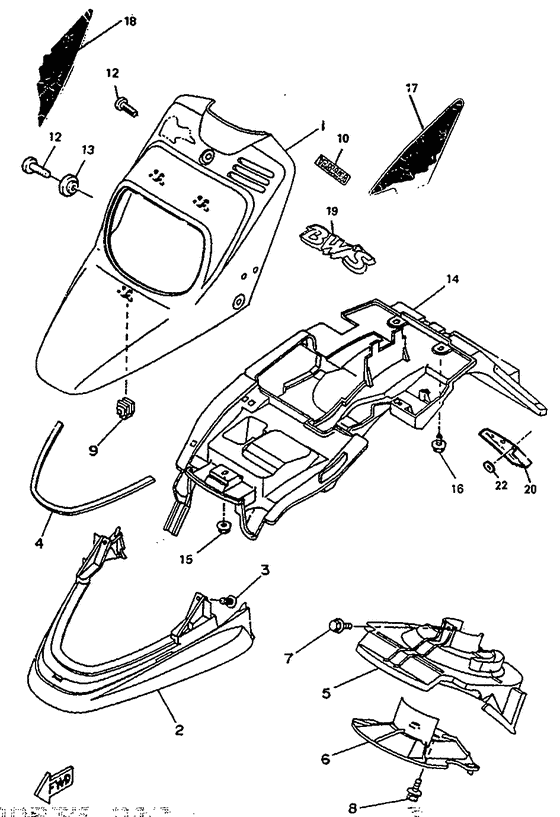

Fender Diagram Yamaha CW50 BW'S
- Year
- 1994
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4EY2
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-F1511-00-11
Fender, Front
Black 2 |
3VL-F1511-00-11 |
— | ||
|
01
|
01
3VL-F1511-00-PC
Fender, Front
Dull violet metallic 5 |
3VL-F1511-00-PC |
— | ||
|
01
|
01
3VL-F1511-00-PD
Fender, Front
Deep yellowish green met.1 |
3VL-F1511-00-PD |
— | ||
|
02
|
02
3VL-F1551-10-00
Over, Fender
|
3VL-F1551-10-00 |
— | ||
|
03
|
03
97701-50016-00 Screw, Truss Head Tapping |
97701-50016-00 |
from US $1.42 |
||
| replacements | |||||
|
03
|
03
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
03
|
03
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
|
04
|
04
3VL-F7482-00-00 Mole, Footrest |
3VL-F7482-00-00 |
US $13.01 |
||
| replacement | |||||
|
04
|
04
3VL-F7482-10-00 Mold, Footrest |
3VL-F7482-10-00 |
US $13.01 |
||
|
05
|
05
3VL-F1552-01-00 Fender, Inner |
3VL-F1552-01-00 |
US $34.04 |
||
|
06
|
06
3VL-F1553-00-00
Fender, Inner 2
|
3VL-F1553-00-00 |
— | ||
|
07
|
07
95801-06010-00 Bolt, Flange |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
07
|
07
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
07
|
07
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
08
|
08
90119-06085-00 Bolt, With Washer |
90119-06085-00 |
from US $2.41 |
||
| replacements | |||||
|
08
|
08
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.77 |
||
|
08
|
08
90119-06123-00 Bolt, With Washer(1Jk) |
90119-06123-00 |
from US $2.41 |
||
|
09
|
09
35R-26294-00-00 Nut 1 |
35R-26294-00-00 |
from US $6.31 |
||
|
10
|
10
3WV-F1565-00-00
Emblem 2
|
3WV-F1565-00-00 |
— | ||
|
12
|
12
90154-06808-00 Screw, Binding |
90154-06808-00 |
US $5.29 |
||
| replacement | |||||
|
12
|
12
90154-06061-00 Screw, Binding |
90154-06061-00 |
from US $3.60 |
||
|
13
|
13
3VL-F1545-00-00 Plate 3 |
3VL-F1545-00-00 |
US $3.78 |
||
|
14
|
14
4EY-F1629-10-00
Guard, Mud
|
4EY-F1629-10-00 |
— | ||
| replacement | |||||
|
14
|
14
4EY-F1629-20-00
Guard, Mud
|
4EY-F1629-20-00 |
— | ||
|
15
|
15
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
16
|
16
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
17
|
17
3WV-F1569-00-00
Graphic 1
For dvm5 |
3WV-F1569-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
For dvm5 |
999-99999-99-00 |
— | ||
|
18
|
18
3WV-F1579-00-00
Graphic 2
For dvm5 |
3WV-F1579-00-00 |
— | ||
|
19
|
19
4LJ-F1599-00-00
Graphic 3
|
4LJ-F1599-00-00 |
— | ||
|
20
|
20
4EY-F1691-00-00
Flap
|
4EY-F1691-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
90201-046E8-00 Washer, Plate |
90201-046E8-00 |
from US $1.35 |
||
| replacements | |||||
|
22
|
22
90201-04027-00 Washer, Plate |
90201-04027-00 |
from US $1.35 |
||
|
22
|
22
902-01044-R6-00
Washer, Plate (90201-04325-00 )
|
902-01044-R6-00 |
— | ||
|
22
|
22
NK1-86540-10-00
Grommet
|
NK1-86540-10-00 |
— | ||
| replacement | |||||
|
22
|
22
90480-11X02-00 Grommet |
90480-11X02-00 |
US $5.67 |
||
|
23
|
23
NK1-86540-10-00
Grommet
No illustration |
NK1-86540-10-00 |
— | ||
| replacement | |||||
|
23
|
23
90480-11X02-00 GrommetNo illustration |
90480-11X02-00 |
US $5.67 |
||
