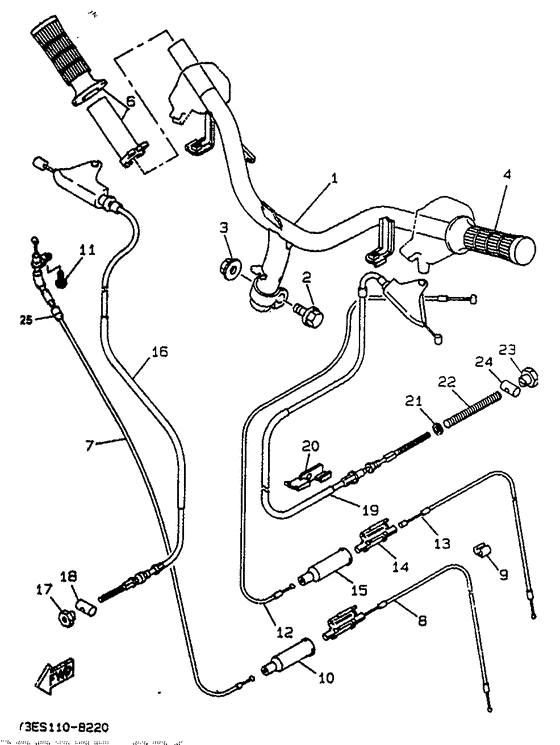

Steering handle & cable Diagram Yamaha CW50 BW'S
- Year
- 1994
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4EY2
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-F6110-00-00
Handle Comp
|
3VL-F6110-00-00 |
— | ||
| replacement | |||||
|
01
|
01
3VL-F6110-01-00
Handle Comp
|
3VL-F6110-01-00 |
— | ||
|
02
|
02
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
03
|
03
95611-10200-00 Nut, U Flange |
95611-10200-00 |
from US $2.75 |
||
| replacements | |||||
|
03
|
03
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
03
|
03
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
|
04
|
04
3VL-F6241-00-00 Grip |
3VL-F6241-00-00 |
US $14.42 |
||
|
06
|
06
3VL-F6240-00-00
Grip Assy
|
3VL-F6240-00-00 |
— | ||
|
07
|
07
3VL-F6311-01-00
Cable, Throttle 1
|
3VL-F6311-01-00 |
— | ||
| replacement | |||||
|
07
|
07
3VL-F6311-02-00 Wire Throttle 1 |
3VL-F6311-02-00 |
US $34.34 |
||
|
08
|
08
3VL-F6312-01-00 Cable, Throttle 2 |
3VL-F6312-01-00 |
US $34.47 |
||
|
09
|
09
90466-15009-00
Guide
|
90466-15009-00 |
— | ||
|
10
|
10
3WG-F6329-00-00 Cap, Rubber |
3WG-F6329-00-00 |
from US $9.67 |
||
|
11
|
11
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
11
|
11
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
12
|
12
3VL-F6331-00-00 Cable, Starter 1 |
3VL-F6331-00-00 |
US $18.72 |
||
|
13
|
13
3VL-F6334-00-00
Cable, Starter 2
|
3VL-F6334-00-00 |
— | ||
| replacement | |||||
|
13
|
13
3VL-F6334-02-00 Cable, Starter 2 |
3VL-F6334-02-00 |
from US $32.11 |
||
|
14
|
14
3VL-F6261-00-00 Connector, Cable |
3VL-F6261-00-00 |
from US $12.47 |
||
|
15
|
15
3WG-F6329-00-00 Cap, Rubber |
3WG-F6329-00-00 |
from US $9.67 |
||
|
16
|
16
3VL-F6341-00-00
Wire, Brake 1
|
3VL-F6341-00-00 |
— | ||
|
17
|
17
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
18
|
18
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
19
|
19
3VL-F6351-00-00 Cable, Brake |
3VL-F6351-00-00 |
US $110.41 |
||
|
20
|
20
90465-30195-00
Clamp
|
90465-30195-00 |
— | ||
|
21
|
21
90202-08175-00 Washer, Plate |
90202-08175-00 |
from US $1.98 |
||
|
22
|
22
90501-122E1-00 Spring, Compression |
90501-122E1-00 |
from US $1.70 |
||
|
23
|
23
90179-06411-00 Nut |
90179-06411-00 |
from US $1.52 |
||
|
24
|
24
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.66 |
||
|
25
|
25
3VL-F6262-00-00 Cap, Cable Connector |
3VL-F6262-00-00 |
from US $9.63 |
||
|
25
|
25
3VL-F6316-00-00
Boot, Throttle Cable
|
3VL-F6316-00-00 |
— | ||
