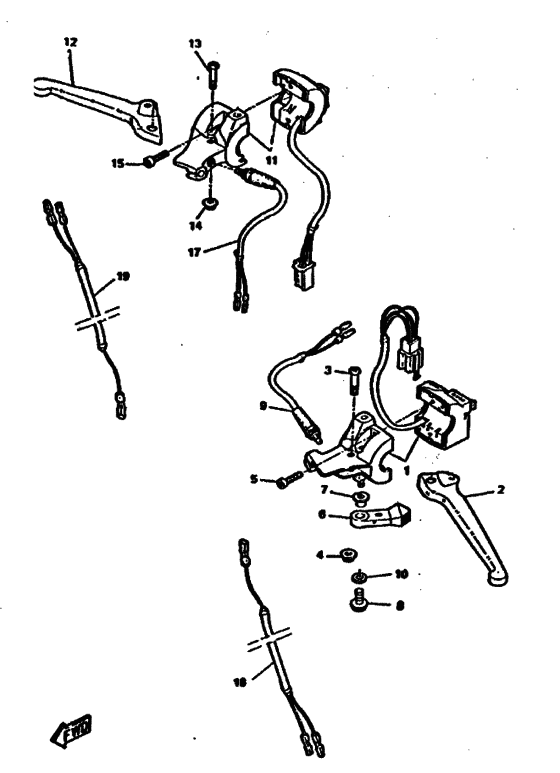

Handle switch & lever Diagram Yamaha CW50 BW'S
- Year
- 1996
- Colour
- Blue Metallic 9 (BM9; 0448)
- Model code
- 4RW2
- Sales region
- Europe (020)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3ES-82910-00-00 Lever Holder Assembly |
3ES-82910-00-00 |
US $304.27 |
||
|
2
|
2
14T-83912-01-00 Lever 1 |
14T-83912-01-00 |
from US $15.02 |
||
|
3
|
3
90149-06175-00 Screw |
90149-06175-00 |
from US $3.54 |
||
|
4
|
4
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
5
|
5
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
6
|
6
4K3-83941-00-00 Lever, Starter |
4K3-83941-00-00 |
from US $19.41 |
||
|
7
|
7
3L4-83943-00-00 Washer, Starter |
3L4-83943-00-00 |
from US $2.69 |
||
|
8
|
8
985-07050-12-00
Screw, Pan Head
|
985-07050-12-00 |
— | ||
| replacement | |||||
|
8
|
8
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
9
|
9
2T4-83980-00-00 Front Stop Switch As |
2T4-83980-00-00 |
from US $21.62 |
||
| replacement | |||||
|
9
|
9
3E1-83980-09-00 Front Stop Switch Assy |
3E1-83980-09-00 |
from US $25.12 |
||
|
10
|
10
92907-05200-00 Washer |
92907-05200-00 |
from US $1.36 |
||
|
11
|
11
3ES-82920-00-00
Lever Holder Assy (R
|
3ES-82920-00-00 |
— | ||
| replacement | |||||
|
11
|
11
3ES-82920-09-00
Lever Holder Assy (Right)
|
3ES-82920-09-00 |
— | ||
|
12
|
12
14T-83922-01-00 Lever 2 |
14T-83922-01-00 |
from US $14.73 |
||
|
13
|
13
90149-06175-00 Screw |
90149-06175-00 |
from US $3.54 |
||
|
14
|
14
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
15
|
15
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
17
|
17
3E1-83980-01-00 Front Stop Switch AssyAS |
3E1-83980-01-00 |
from US $21.62 |
||
| replacement | |||||
|
17
|
17
3E1-83980-09-00 Front Stop Switch AssyAS |
3E1-83980-09-00 |
from US $25.12 |
||
|
18
|
18
4RW-H2117-00-00
Wire Lead
|
4RW-H2117-00-00 |
— | ||
|
19
|
19
4RW-H2127-00-00
Wire Lead 2
|
4RW-H2127-00-00 |
— | ||
|
19
|
19
NE9-86620-00-00
Clip
|
NE9-86620-00-00 |
— | ||
| replacement | |||||
|
19
|
19
4VU-H3936-00-00
Band, Switch Cord
|
4VU-H3936-00-00 |
— | ||
