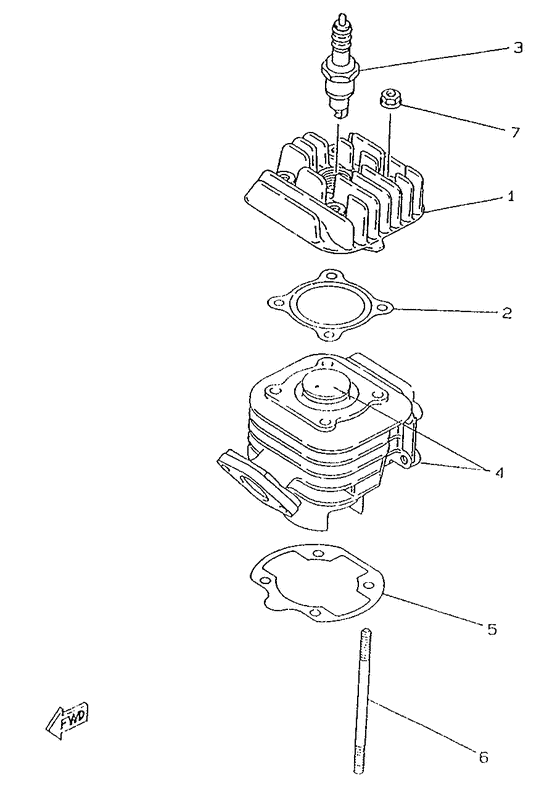

Cylinder Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1995
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4TD4
- Sales region
- Portugal (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-E1111-00-00 Head, Cylinder 1 |
4SB-E1111-00-00 |
US $82.22 |
||
|
02
|
02
3VL-E1181-00-00 Gasket, Cylinder Head |
3VL-E1181-00-00 |
from US $12.21 |
||
|
03
|
03
94700-00195-00
Plug, Spark
Br8hs |
94700-00195-00 |
— | ||
| replacement | |||||
|
03
|
03
94701-00195-00 Plug,spark(Ngk Br8Hs)Br8hs |
94701-00195-00 |
US $7.76 |
||
|
04
|
04
4SB-E1311-00-00 Cylinder 1 |
4SB-E1311-00-00 |
US $428.04 |
||
|
05
|
05
3VL-E1351-00-00 Gasket, Cylinder |
3VL-E1351-00-00 |
from US $9.29 |
||
|
06
|
06
90116-06418-00 Bolt, Stud |
90116-06418-00 |
from US $1.81 |
||
|
07
|
07
3VL-E1633-00-00
Pin, Piston
Not illustred |
3VL-E1633-00-00 |
— | ||
|
07
|
07
4SB-E1603-00-00
Piston Ring Set (Std)
Not illustred |
4SB-E1603-00-00 |
— | ||
|
07
|
07
4SB-E1631-00-00 Piston (Std)Not illustred |
4SB-E1631-00-00 |
US $176.96 |
||
|
07
|
07
93450-11120-00 CirclipNot illustred |
93450-11120-00 |
from US $1.81 |
||
|
07
|
07
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
