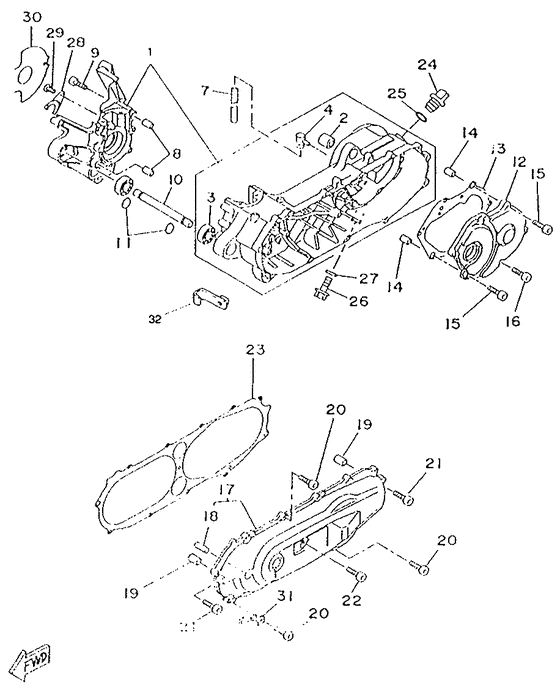

Crankcase Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Colour
- Candy Blue (CB; 0029)
- Model code
- 4UR1
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-E5150-00-00 Crankcase Assy |
3VL-E5150-00-00 |
from US $612.25 |
||
|
02
|
02
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $7.79 |
||
|
03
|
03
93306-00203-00 Bearing |
93306-00203-00 |
from US $25.64 |
||
| replacement | |||||
|
03
|
03
93306-00201-00 Brg,r-B 6002Rs 32Mm 30G Ky |
93306-00201-00 |
from US $25.64 |
||
|
04
|
04
3VL-E5371-00-00 Breather |
3VL-E5371-00-00 |
from US $4.39 |
||
| replacement | |||||
|
04
|
04
37P-E5371-00-00 Breather |
37P-E5371-00-00 |
US $4.39 |
||
|
07
|
07
90446-13311-00 Hose |
90446-13311-00 |
from US $1.40 |
||
| replacement | |||||
|
07
|
07
90446-13803-00 Hose |
90446-13803-00 |
from US $1.37 |
||
|
08
|
08
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
08
|
08
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
09
|
09
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
| replacements | |||||
|
09
|
09
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
09
|
09
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
10
|
10
3VL-E5317-00-00 Spacer, Engine Mou |
3VL-E5317-00-00 |
from US $28.82 |
||
| replacement | |||||
|
10
|
10
3VL-E5317-10-00 Spacer, Engine Mou |
3VL-E5317-10-00 |
from US $19.64 |
||
|
11
|
11
934-40150-12-00
Circlip
|
934-40150-12-00 |
— | ||
| replacement | |||||
|
11
|
11
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
12
|
12
3VL-E5421-00-00 Cover, Crankcase 2 |
3VL-E5421-00-00 |
from US $103.18 |
||
| replacement | |||||
|
12
|
12
3VL-E5421-10-00 Cover, Crankcase 2 |
3VL-E5421-10-00 |
from US $101.63 |
||
|
13
|
13
3VL-E5461-00-00 Gasket, Crankcase Cover |
3VL-E5461-00-00 |
from US $1.36 |
||
|
14
|
14
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
14
|
14
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
14
|
14
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
15
|
15
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
| replacements | |||||
|
15
|
15
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
15
|
15
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
16
|
16
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
17
|
17
3VL-E5411-00-00 Cover, Crankcase 1 |
3VL-E5411-00-00 |
US $163.24 |
||
|
18
|
18
3VL-E5659-00-00 Shaft |
3VL-E5659-00-00 |
from US $6.89 |
||
| replacement | |||||
|
18
|
18
3VL-E5659-10-00 Shaft |
3VL-E5659-10-00 |
from US $2.99 |
||
|
19
|
19
995-30100-14-00
Pin, Dowel
|
995-30100-14-00 |
— | ||
| replacements | |||||
|
19
|
19
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
19
|
19
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
20
|
20
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
21
|
21
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
| replacements | |||||
|
21
|
21
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
21
|
21
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
22
|
22
91317-06045-00 Bolt,socket |
91317-06045-00 |
from US $1.34 |
||
| replacement | |||||
|
22
|
22
901-1006X-81-00
Bolt, Hexagon Socket Head
|
901-1006X-81-00 |
— | ||
|
23
|
23
3VL-E5451-00-00 Gasket, Crankcase Cover |
3VL-E5451-00-00 |
from US $15.70 |
||
|
24
|
24
3VL-E5363-00-00 Plug, Oil |
3VL-E5363-00-00 |
from US $4.52 |
||
|
25
|
25
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
25
|
25
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
26
|
26
958-07080-16-00
Bolt, Flange
|
958-07080-16-00 |
— | ||
| replacements | |||||
|
26
|
26
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
26
|
26
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
27
|
27
90430-08206-00 Gasket |
90430-08206-00 |
from US $1.84 |
||
|
28
|
28
3VL-E5128-00-00 Holder |
3VL-E5128-00-00 |
from US $6.66 |
||
|
29
|
29
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
29
|
29
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.36 |
||
|
30
|
30
3VL-E5462-00-00 Gasket, Crankcase Cover |
3VL-E5462-00-00 |
from US $10.20 |
||
|
31
|
31
90465-08122-00 Clamp |
90465-08122-00 |
from US $4.11 |
||
| replacement | |||||
|
31
|
31
90465-08277-00 Clamp(51Y) |
90465-08277-00 |
from US $4.11 |
||
|
32
|
32
4SB-F1238-00-00 Bracket |
4SB-F1238-00-00 |
from US $17.57 |
||
