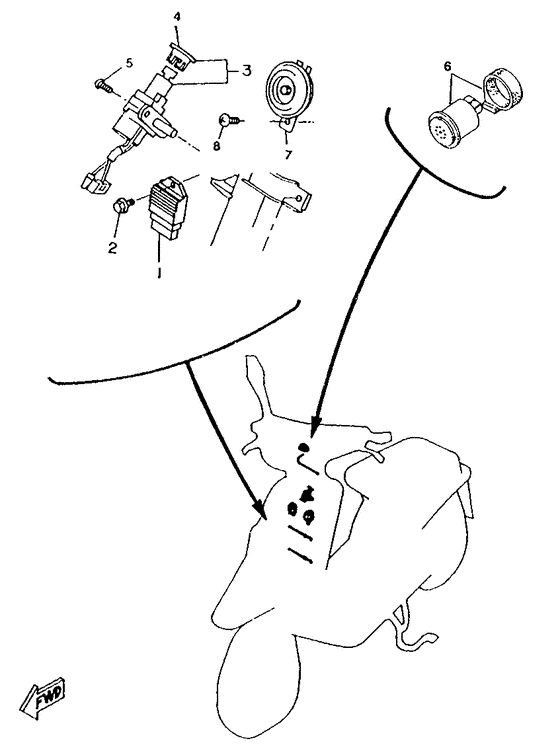

Electrical 1 Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Colour
- Candy Blue (CB; 0029)
- Model code
- 4UR1
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-81960-11-00 Rectifier & Regulator Assy |
3KJ-81960-11-00 |
from US $92.84 |
||
| replacement | |||||
|
01
|
01
4VV-H1960-01-00 Rectifier Regulator Assy |
4VV-H1960-01-00 |
US $208.94 |
||
|
02
|
02
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
02
|
02
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.41 |
||
|
03
|
03
4SB-H2021-00-00
Key Set
|
4SB-H2021-00-00 |
— | ||
| replacement | |||||
|
03
|
03
4SB-H2021-02-00
Key Set
|
4SB-H2021-02-00 |
— | ||
|
04
|
04
4BX-H251J-00-00 Ring |
4BX-H251J-00-00 |
US $13.60 |
||
| replacement | |||||
|
04
|
04
2EX-82552-20-00 Cap, Switch |
2EX-82552-20-00 |
from US $10.58 |
||
|
05
|
05
90109-06851-00 Bolt |
90109-06851-00 |
from US $2.13 |
||
|
06
|
06
4SB-83350-00-00
Flasher Relay Assy
|
4SB-83350-00-00 |
— | ||
| replacement | |||||
|
06
|
06
4TD-H3350-01-00
Flasher Relay Assy
|
4TD-H3350-01-00 |
— | ||
|
07
|
07
4CU-H3371-00-00 Horn |
4CU-H3371-00-00 |
US $53.59 |
||
| replacement | |||||
|
07
|
07
4CU-H3371-03-00 Horn |
4CU-H3371-03-00 |
US $53.59 |
||
|
08
|
08
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
