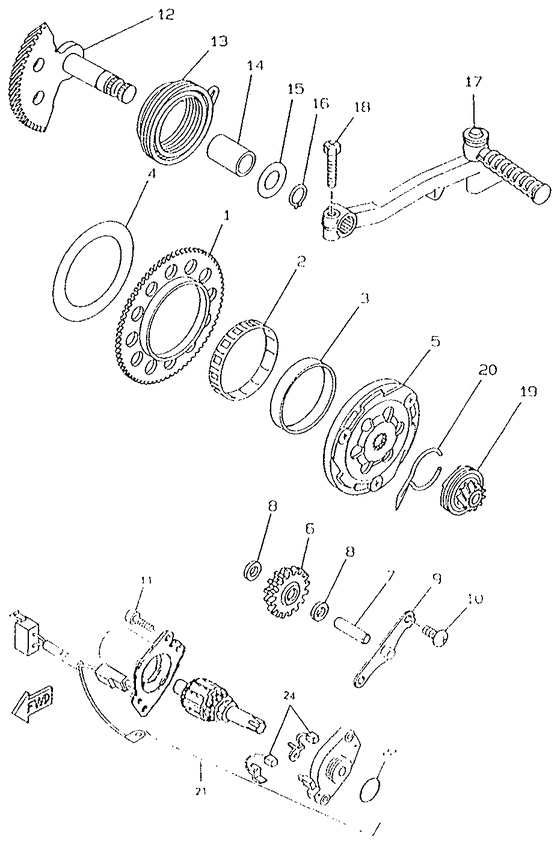

Starter Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Colour
- Candy Blue (CB; 0029)
- Model code
- 4UR1
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3AA-15513-00-00 Gear 1 (71T) |
3AA-15513-00-00 |
from US $33.15 |
||
|
02
|
02
93310-257R1-00 Bearing |
93310-257R1-00 |
from US $28.48 |
||
| replacement | |||||
|
02
|
02
93310-25712-00 Bearing |
93310-25712-00 |
from US $28.48 |
||
|
03
|
03
3VL-E5528-00-00 Boss, Gear |
3VL-E5528-00-00 |
from US $20.54 |
||
| replacement | |||||
|
03
|
03
3VL-E5528-10-00 Boss, Gear |
3VL-E5528-10-00 |
from US $20.54 |
||
|
04
|
04
90201-574L1-00 Washer, Plate |
90201-574L1-00 |
from US $8.64 |
||
|
05
|
05
3VL-15570-00-00 Starter Clutch Assy |
3VL-15570-00-00 |
from US $73.48 |
||
|
06
|
06
3AA-15650-00-00 Idle Gear Assembly (65T) |
3AA-15650-00-00 |
from US $39.44 |
||
|
07
|
07
3VL-E5659-00-00 Shaft |
3VL-E5659-00-00 |
from US $6.89 |
||
| replacement | |||||
|
07
|
07
3VL-E5659-10-00 Shaft |
3VL-E5659-10-00 |
from US $2.99 |
||
|
08
|
08
90201-08088-00 Washer, Plate 2562171800 |
90201-08088-00 |
from US $1.70 |
||
|
09
|
09
3VL-E5532-00-00 Plate, Idle Gear |
3VL-E5532-00-00 |
from US $9.92 |
||
|
10
|
10
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
10
|
10
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.36 |
||
|
11
|
11
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
12
|
12
3ES-15601-00-00 Kick Shaft Assy |
3ES-15601-00-00 |
from US $81.90 |
||
| replacements | |||||
|
12
|
12
5AD-E5601-00-00
Kick Shaft Assy
|
5AD-E5601-00-00 |
— | ||
|
12
|
12
3ES-15601-02-00 Kick Shaft Assy |
3ES-15601-02-00 |
from US $86.47 |
||
|
13
|
13
905-08326-09-00 Spring, Torsion (32N) |
905-08326-09-00 |
from US $8.08 |
||
|
14
|
14
90380-15083-00 Bush, Solid |
90380-15083-00 |
from US $1.62 |
||
| replacement | |||||
|
14
|
14
90380-15817-00 Bush, Solid |
90380-15817-00 |
from US $4.25 |
||
|
15
|
15
90201-155G5-00 Washer, Plate |
90201-155G5-00 |
from US $2.55 |
||
| replacement | |||||
|
15
|
15
90201-154E9-00 Washer, Plate (5G3) |
90201-154E9-00 |
from US $2.55 |
||
|
16
|
16
99009-15400-00 Circlip(1Ar) |
99009-15400-00 |
from US $1.07 |
||
|
17
|
17
3VL-E5620-01-00 Kick Crank Assy |
3VL-E5620-01-00 |
US $94.99 |
||
|
18
|
18
3VL-E5793-00-00 Screw, Hexagon |
3VL-E5793-00-00 |
US $5.29 |
||
| replacement | |||||
|
18
|
18
90153-06008-00 Screw, Hexagon |
90153-06008-00 |
from US $1.70 |
||
|
19
|
19
1NT-15630-01-00 Kick Pinion Assy |
1NT-15630-01-00 |
from US $71.57 |
||
|
20
|
20
3VL-E5673-00-00 Clip |
3VL-E5673-00-00 |
from US $7.93 |
||
|
21
|
21
4SB-81800-00-00
Starting Motor Assy
|
4SB-81800-00-00 |
— | ||
| replacement | |||||
|
21
|
21
4SB-H1800-10-00 Starting Motor Ass |
4SB-H1800-10-00 |
US $327.44 |
||
|
22
|
22
93210-23614-00 O-Ring |
93210-23614-00 |
from US $1.56 |
||
|
24
|
24
1YU-81801-M0-00 Brush Set |
1YU-81801-M0-00 |
from US $28.48 |
||
