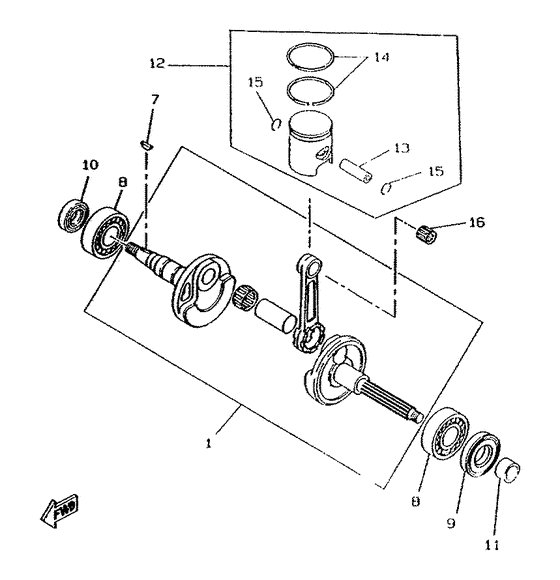

Crankshaft & Piston Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Model code
- 4VB1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-E1400-10-00 Crankshaft Assy |
3VL-E1400-10-00 |
US $460.35 |
||
|
07
|
07
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
08
|
08
933-06204-68-00 Bearing(4Ed) |
933-06204-68-00 |
from US $29.27 |
||
|
09
|
09
93102-20371-00 Oil Seal(1Yu) |
93102-20371-00 |
from US $7.36 |
||
|
10
|
10
93101-20138-00 Oil Seal |
93101-20138-00 |
from US $5.06 |
||
|
11
|
11
90387-156U0-00 Collar |
90387-156U0-00 |
from US $8.22 |
||
|
12
|
12
3VL-E1631-00-96
Piston (Std)
|
3VL-E1631-00-96 |
— | ||
| replacement | |||||
|
12
|
12
3VL-E1631-00-00
Piston (Std)
|
3VL-E1631-00-00 |
— | ||
|
12
|
12
3VL-E1636-00-00
Piston (0.50Mm O/s)
|
3VL-E1636-00-00 |
— | ||
|
13
|
13
3VL-E1633-00-00
Pin, Piston
|
3VL-E1633-00-00 |
— | ||
|
14
|
14
3VL-E1610-00-00
Piston Ring Set (Std)
|
3VL-E1610-00-00 |
— | ||
|
14
|
14
3VL-E1610-20-00
Piston Ring Set (0.50Mm O/s)
|
3VL-E1610-20-00 |
— | ||
|
15
|
15
93450-11120-00 Circlip |
93450-11120-00 |
from US $1.81 |
||
|
16
|
16
93310-210M0-00 Bearing |
93310-210M0-00 |
from US $11.46 |
||
