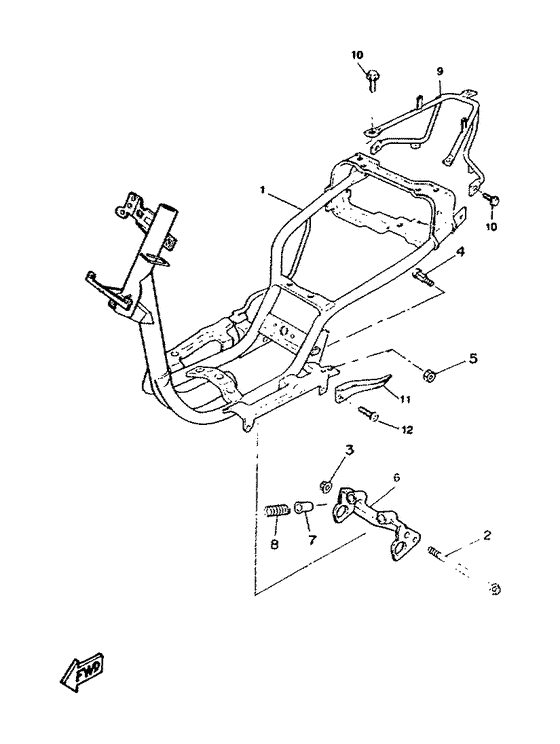

Frame Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Model code
- 4VB1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-F1110-00-00
Frame Comp
(yamaha black) |
4SB-F1110-00-00 |
— | ||
| replacements | |||||
|
01
|
01
5FX-F1110-10-00
Frame Assy (Yamaha Black)
(yamaha black) |
5FX-F1110-10-00 |
— | ||
|
01
|
01
4YB-F1110-13-00
Substitute:5Fxf111010
(yamaha black) |
4YB-F1110-13-00 |
— | ||
|
02
|
02
90105-10063-00 Bolt, Flange |
90105-10063-00 |
from US $9.21 |
||
|
03
|
03
90179-10279-00 Nut |
90179-10279-00 |
from US $1.28 |
||
|
04
|
04
2T4-21481-01-00 Bolt, Engine Mounting 1 |
2T4-21481-01-00 |
from US $5.24 |
||
|
05
|
05
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
06
|
06
3VL-F1410-11-00
Engine Bracket Comp
(yamaha black) |
3VL-F1410-11-00 |
— | ||
|
07
|
07
2T4-2139X-00-00 Damper |
2T4-2139X-00-00 |
US $1.73 |
||
| replacement | |||||
|
07
|
07
3WG-F139X-00-00 Damper |
3WG-F139X-00-00 |
US $16.46 |
||
|
08
|
08
90501-29517-00 Spring, Compression |
90501-29517-00 |
US $2.83 |
||
| replacement | |||||
|
08
|
08
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
|
09
|
09
4VA-F1232-00-00
Reinforcement, Tail
|
4VA-F1232-00-00 |
— | ||
|
10
|
10
95827-08016-00 Bolt, Flange |
95827-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
11
|
11
4SB-F7452-00-00
Bracket, Footrest 1
|
4SB-F7452-00-00 |
— | ||
|
12
|
12
92017-08016-00 Bolt, Button |
92017-08016-00 |
from US $1.56 |
||
|
13
|
13
4VB-F1182-00-00
Manufacturer Plate
|
4VB-F1182-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
90267-32801-00 Rivet, Blind |
90267-32801-00 |
US $3.12 |
||
