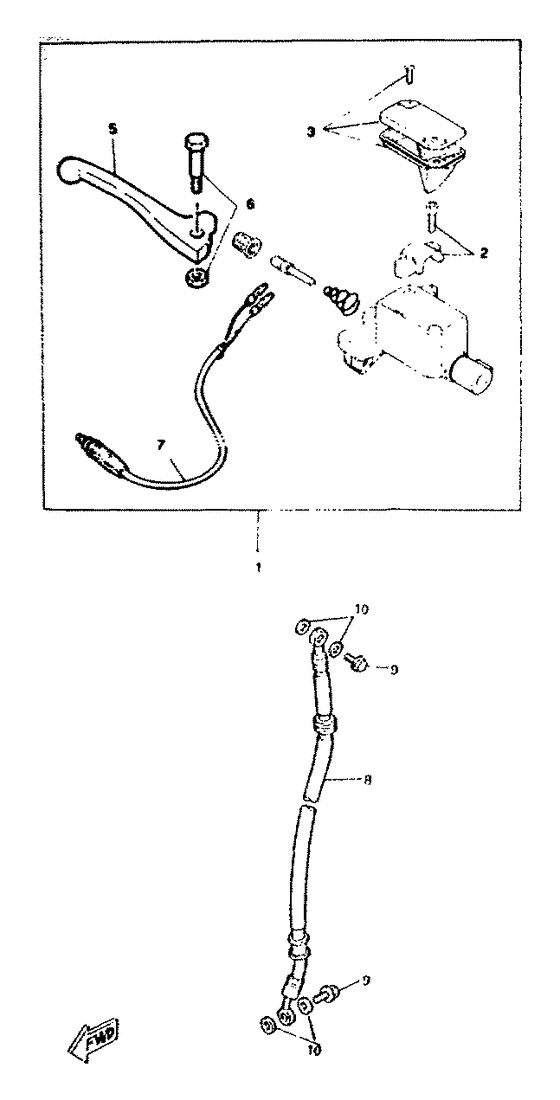

Front master cylinder Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1996
- Model code
- 4VB1
- Sales region
- General (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-F583T-00-00
Master Cylinder Assy
|
4SB-F583T-00-00 |
— | ||
| replacements | |||||
|
01
|
01
2B2-F583T-01-00
Master Cylinder Assy
|
2B2-F583T-01-00 |
— | ||
|
01
|
01
4SB-F583T-01-00
Master Front Cylinder
|
4SB-F583T-01-00 |
— | ||
|
02
|
02
4SB-F5867-00-00 Bracket, Master Cylinder |
4SB-F5867-00-00 |
US $29.04 |
||
|
03
|
03
4SB-F5852-00-00 Cap, Reservoir |
4SB-F5852-00-00 |
US $45.87 |
||
|
05
|
05
4SB-H3922-00-00
Lever 2
|
4SB-H3922-00-00 |
— | ||
|
06
|
06
4SB-H3945-00-00
Bolt, Lever
|
4SB-H3945-00-00 |
— | ||
|
07
|
07
4SB-H3980-00-00
Front Stop Switch Assy
|
4SB-H3980-00-00 |
— | ||
| replacement | |||||
|
07
|
07
5XL-H3980-00-00 Front Stop Switch |
5XL-H3980-00-00 |
US $36.95 |
||
|
08
|
08
4SB-F5872-01-00
Hose, Brake 1
|
4SB-F5872-01-00 |
— | ||
|
09
|
09
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
10
|
10
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
