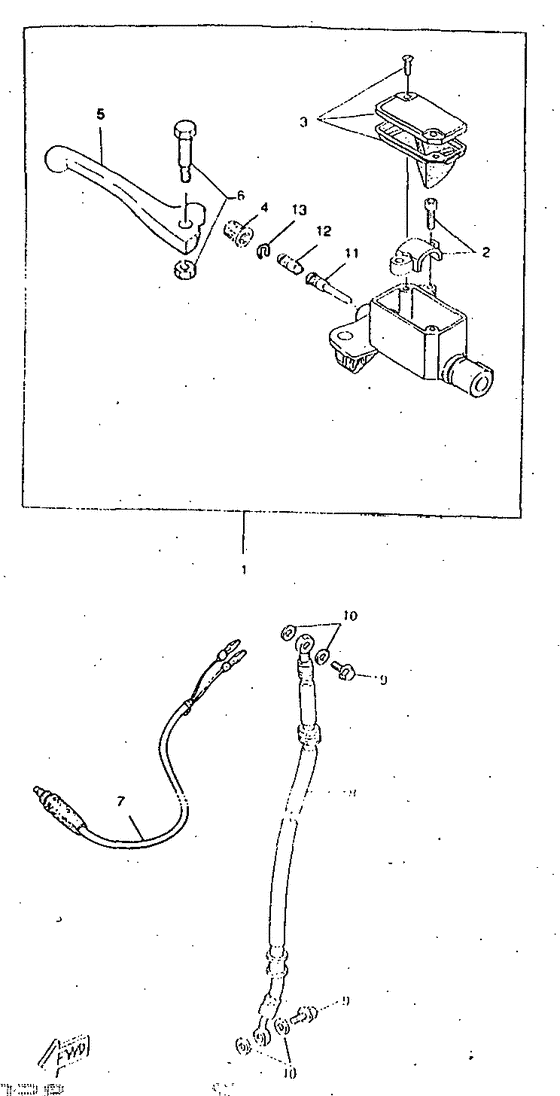

Front master cylinder Diagram Yamaha CW50 BOOSTER
- Year
- 1998
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4WT3
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- CW50RSP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4TD-F583T-01-00
Master Cylinder Assy
|
4TD-F583T-01-00 |
— | ||
|
02
|
02
4TD-F5867-00-00
Bracket, Master Cylinder
|
4TD-F5867-00-00 |
— | ||
|
03
|
03
4TD-F5852-00-00
Cap, Reservoir
|
4TD-F5852-00-00 |
— | ||
|
04
|
04
4TD-F6339-00-00
Boot
|
4TD-F6339-00-00 |
— | ||
|
05
|
05
4TD-H3922-00-00
Lever 2
|
4TD-H3922-00-00 |
— | ||
|
06
|
06
4TD-H3945-00-00
Bolt, Lever
|
4TD-H3945-00-00 |
— | ||
|
07
|
07
5AD-H3980-00-00
Front Stop Switch Assy
|
5AD-H3980-00-00 |
— | ||
| replacement | |||||
|
07
|
07
5XL-H3980-00-00 Front Stop Switch |
5XL-H3980-00-00 |
US $36.95 |
||
|
08
|
08
4SB-F5872-01-00
Hose, Brake 1
|
4SB-F5872-01-00 |
— | ||
|
09
|
09
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
10
|
10
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
11
|
11
4TD-F5856-00-00
Piston, Master Cylinder
|
4TD-F5856-00-00 |
— | ||
|
12
|
12
4TD-F5924-00-00
Pin, Pad
|
4TD-F5924-00-00 |
— | ||
|
13
|
13
4TD-F5925-00-00
Clip
|
4TD-F5925-00-00 |
— | ||
|
14
|
14
4VV-F5870-00-00
Master Cylinder Sub Assy
Not illustred |
4VV-F5870-00-00 |
— | ||
