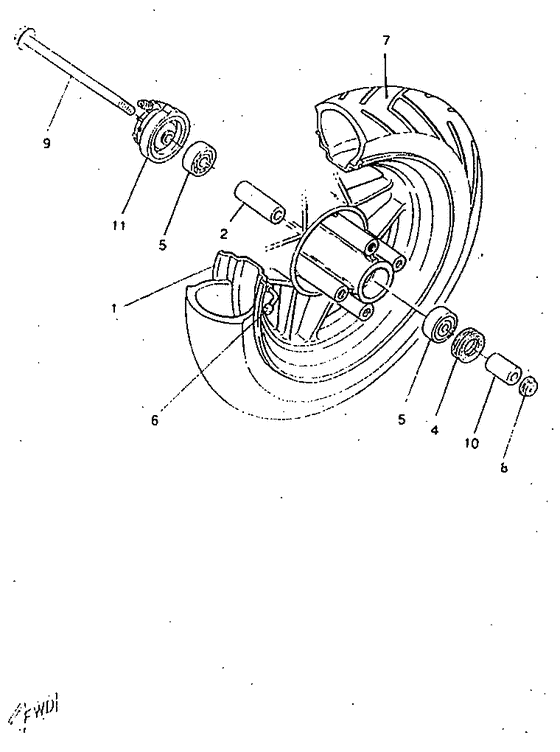

Front wheel Diagram Yamaha CW50 BOOSTER
- Year
- 1998
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4WT3
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- CW50RSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4UP-F5168-30-00
Cast Wheel, Front
Ur bl2 |
4UP-F5168-30-00 |
— | ||
| replacement | |||||
|
01
|
01
4UP-F5168-31-00
Wheel Front (Cast)
Ur bl2 |
4UP-F5168-31-00 |
— | ||
|
01
|
01
4UP-F5168-40-00
Cast Wheel, Front
Ur vyrs1 |
4UP-F5168-40-00 |
— | ||
| replacement | |||||
|
01
|
01
4UP-F5168-41-00
Wheel Front (Cast)
Ur vyrs1 |
4UP-F5168-41-00 |
— | ||
|
02
|
02
4SB-F5117-00-00 Spacer, Bearing |
4SB-F5117-00-00 |
from US $11.48 |
||
|
04
|
04
93106-20001-00 Oil Seal |
93106-20001-00 |
US $6.24 |
||
|
05
|
05
93306-300Y8-00 Bearing |
93306-300Y8-00 |
from US $25.64 |
||
|
06
|
06
3VL-F5170-10-00 Air Valve Assy |
3VL-F5170-10-00 |
from US $21.56 |
||
|
07
|
07
94112-128P5-00
Tire
120/70-12 pirelli |
94112-128P5-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
120/70-12 pirelli |
999-99999-99-00 |
— | ||
|
07
|
07
94112-128R9-00
Tire
120/70-12 hutchinson |
94112-128R9-00 |
— | ||
|
08
|
08
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
08
|
08
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
09
|
09
486-22141-01-00 Shaft, Pivot |
486-22141-01-00 |
from US $19.84 |
||
|
10
|
10
90387-10079-00 Collar |
90387-10079-00 |
US $15.93 |
||
|
11
|
11
4VV-F5190-00-00 Gear Unit Assy |
4VV-F5190-00-00 |
US $85.05 |
||
| replacements | |||||
|
11
|
11
4VV-F5190-01-00 Gear Unit Assy |
4VV-F5190-01-00 |
US $85.05 |
||
|
11
|
11
5DA-F5190-10-00 Gear Unit Assy |
5DA-F5190-10-00 |
from US $32.93 |
||
