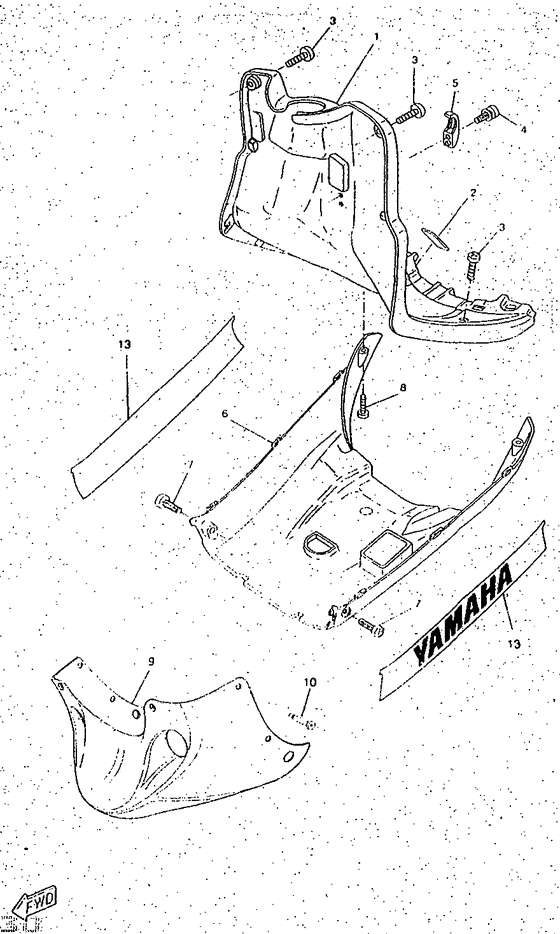

Leg shield Diagram Yamaha CW50 BOOSTER
- Year
- 1998
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4WT3
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- CW50RSP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-F8312-01-00
Leg Shield 2
Ur black |
4SB-F8312-01-00 |
— | ||
|
02
|
02
3WV-F8349-10-00 Cap |
3WV-F8349-10-00 |
from US $8.08 |
||
|
03
|
03
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
03
|
03
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
04
|
04
90154-06X02-00 Screw, Binding |
90154-06X02-00 |
US $11.19 |
||
|
05
|
05
4SB-F1398-00-00 Hanger, Helmet |
4SB-F1398-00-00 |
US $9.49 |
||
|
06
|
06
4SB-F8385-00-00
Cover, Lower
Ur bl2 |
4SB-F8385-00-00 |
— | ||
|
06
|
06
4SB-F8385-90-00
Cover, Lower
Ur vyrs1 |
4SB-F8385-90-00 |
— | ||
|
07
|
07
4SB-F8382-00-00
Screw, Special
|
4SB-F8382-00-00 |
— | ||
|
08
|
08
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
08
|
08
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
09
|
09
4UP-F842M-01-00
Cover 1
Ur bl2 |
4UP-F842M-01-00 |
— | ||
|
09
|
09
4UP-F842M-71-00
Cover 1
Ur vyrs1 |
4UP-F842M-71-00 |
— | ||
|
10
|
10
4UP-F1128-00-00 Rivet |
4UP-F1128-00-00 |
US $6.94 |
||
|
13
|
13
4UP-F839H-00-00
Emblem 1
Ur vyrs1 |
4UP-F839H-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
Ur vyrs1 |
999-99999-99-00 |
— | ||
|
13
|
13
4UP-F839H-30-00
Emblem 1
Ur bl2 |
4UP-F839H-30-00 |
— | ||
