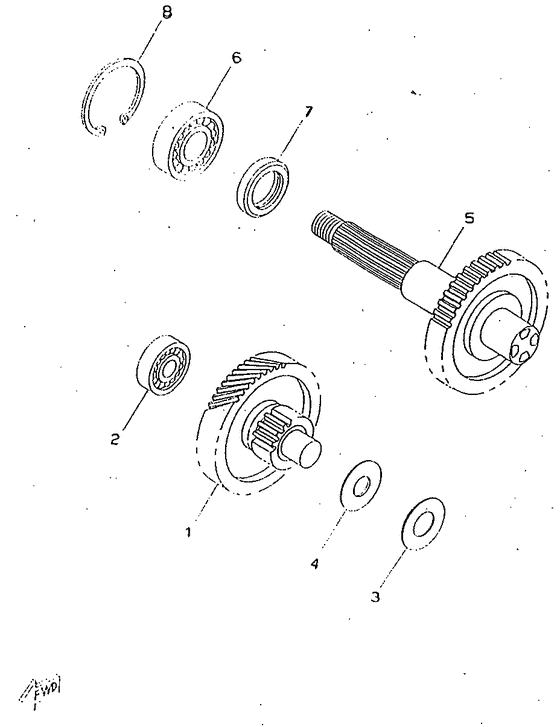

Transmission Diagram Yamaha CW50 BOOSTER
- Year
- 1998
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4WT3
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- CW50RSP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3VL-E7410-00-00
Main Axle Comp
|
3VL-E7410-00-00 |
— | ||
|
02
|
02
93306-20009-00 Bearing (3R0) |
93306-20009-00 |
from US $12.62 |
||
|
03
|
03
90201-140G5-00 Washer, Plate |
90201-140G5-00 |
from US $6.39 |
||
|
04
|
04
90208-14047-00 Washer, Conical Spring |
90208-14047-00 |
from US $3.40 |
||
|
05
|
05
3VL-E7420-00-00
Drive Axle Assy
|
3VL-E7420-00-00 |
— | ||
|
06
|
06
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.68 |
||
|
07
|
07
93102-22314-00 Seal, Oil |
93102-22314-00 |
from US $10.34 |
||
| replacement | |||||
|
07
|
07
93102-22897-00 Oil Seal(1Jy) |
93102-22897-00 |
from US $8.88 |
||
|
08
|
08
93420-40064-00 Circlip |
93420-40064-00 |
from US $5.09 |
||
