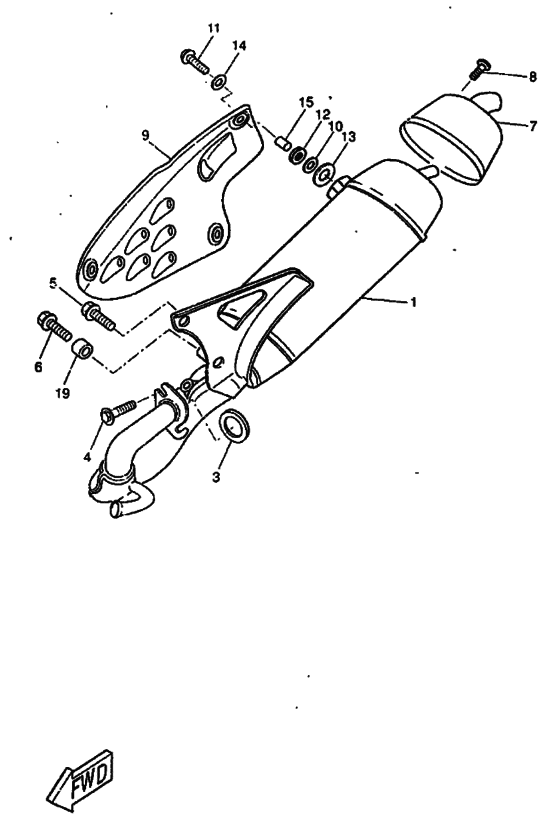

Exhaust Diagram Yamaha CW50 BW'S
- Year
- 1998
- Colour
- Yellowish Gray Metallic 4 (YNM4; 0578)
- Model code
- 4YA4
- Sales region
- Europe (999)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SB-E4610-00-00
Exhaust Pipe Assy 1
|
4SB-E4610-00-00 |
— | ||
|
3
|
3
3HK-14613-00-00 Gasket, Exhaust Pipe |
3HK-14613-00-00 |
from US $9.38 |
||
| replacement | |||||
|
3
|
3
5AD-E4613-00-00 Gasket, Exhaust Pi |
5AD-E4613-00-00 |
US $9.15 |
||
|
4
|
4
90153-06061-00 Screw, Hexagon |
90153-06061-00 |
from US $1.84 |
||
|
5
|
5
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.83 |
||
|
6
|
6
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
7
|
7
4SB-E479X-00-00
Pipe
|
4SB-E479X-00-00 |
— | ||
|
8
|
8
4SB-E4678-00-00
Bolt, Coupling
|
4SB-E4678-00-00 |
— | ||
|
9
|
9
4SB-E4718-10-00
Protector, Muffler 1
|
4SB-E4718-10-00 |
— | ||
|
10
|
10
4SB-E4759-00-00
Washer
|
4SB-E4759-00-00 |
— | ||
| replacement | |||||
|
10
|
10
90201-06X00-00 Washer, PlateWasher, plate |
90201-06X00-00 |
from US $4.11 |
||
|
11
|
11
98904-06016-00 Screw, Bind |
98904-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
98980-06016-00 Screw, Bind (705) |
98980-06016-00 |
from US $1.52 |
||
|
12
|
12
90387-060G7-00 Collar(47X) |
90387-060G7-00 |
from US $1.35 |
||
|
13
|
13
3HK-14766-01-00 Washer, Protector |
3HK-14766-01-00 |
from US $3.97 |
||
| replacement | |||||
|
13
|
13
3HK-14766-02-00 Washer, Protector |
3HK-14766-02-00 |
from US $2.79 |
||
|
14
|
14
4FB-14766-00-00 Washer, Protector |
4FB-14766-00-00 |
from US $3.12 |
||
|
15
|
15
90480-12581-00 Grommet |
90480-12581-00 |
from US $7.79 |
||
|
19
|
19
2JA-14737-00-00 Damper, Muffler |
2JA-14737-00-00 |
US $8.73 |
||
