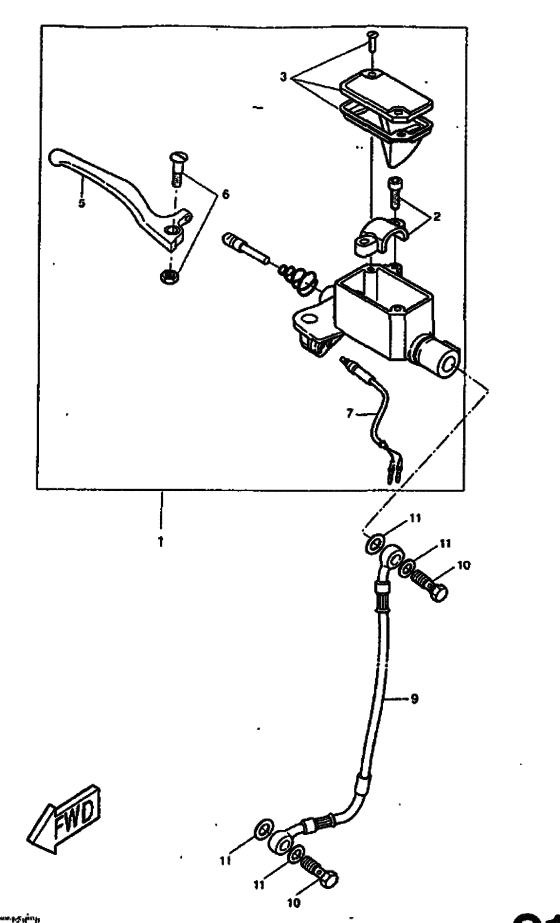

Front master cylinder Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1998
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4YA4
- Sales region
- Europe (999)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- CW50RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SB-F583T-00-00
Master Cylinder Assy
|
4SB-F583T-00-00 |
— | ||
| replacements | |||||
|
1
|
1
2B2-F583T-01-00
Master Cylinder Assy
|
2B2-F583T-01-00 |
— | ||
|
1
|
1
4SB-F583T-01-00
Master Front Cylinder
|
4SB-F583T-01-00 |
— | ||
|
2
|
2
4SB-F5867-00-00 Bracket, Master Cylinder |
4SB-F5867-00-00 |
US $29.04 |
||
|
3
|
3
4SB-F5852-00-00 Cap, Reservoir |
4SB-F5852-00-00 |
US $45.87 |
||
|
5
|
5
4SB-H3922-00-00
Lever 2
|
4SB-H3922-00-00 |
— | ||
|
6
|
6
4SB-H3945-00-00
Bolt, Lever
|
4SB-H3945-00-00 |
— | ||
|
7
|
7
5AD-H3980-01-00 Stop Switch Asy |
5AD-H3980-01-00 |
US $34.70 |
||
| replacement | |||||
|
7
|
7
5XL-H3980-00-00 Front Stop Switch |
5XL-H3980-00-00 |
US $36.95 |
||
|
8
|
8
4SB-F5872-01-00
Hose, Brake 1
|
4SB-F5872-01-00 |
— | ||
|
9
|
9
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
10
|
10
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
10
|
10
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
11
|
11
4YA-F1668-00-00
Label, Tire
NOT ILLUSTRED |
4YA-F1668-00-00 |
— | ||
