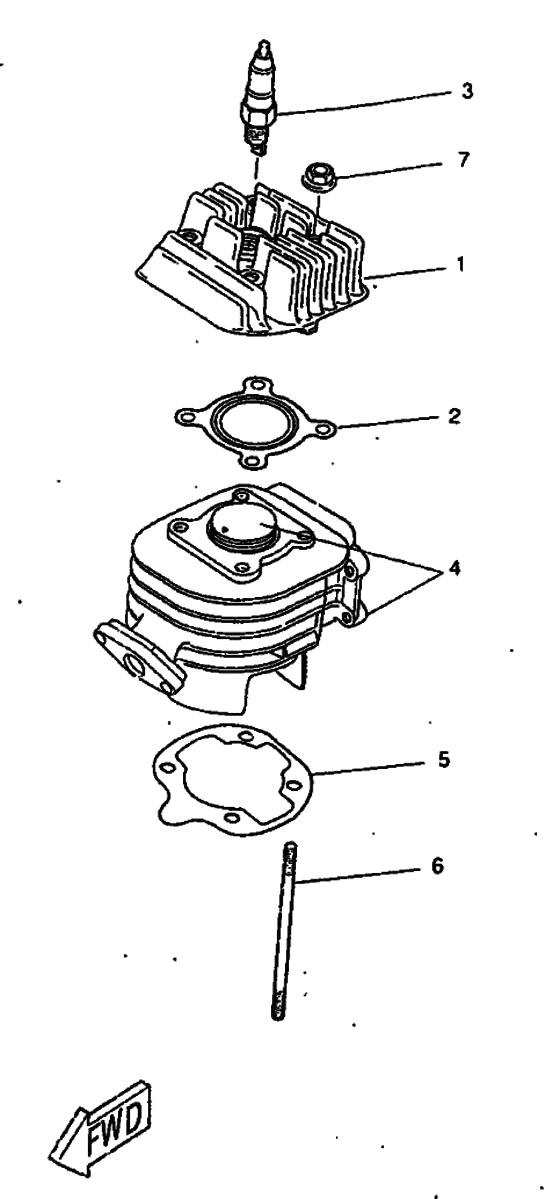

Cylinder Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1998
- Colour
- Deep Orange Candy 1 (DOC1; 0512)
- Model code
- 4YA4
- Sales region
- Europe (999)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CW50RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SB-E1111-00-00 Head, Cylinder 1 |
4SB-E1111-00-00 |
US $82.22 |
||
|
2
|
2
3VL-E1181-00-00 Gasket, Cylinder Head |
3VL-E1181-00-00 |
from US $12.21 |
||
|
3
|
3
94701-00195-00 Plug,spark(Ngk Br8Hs) |
94701-00195-00 |
US $7.76 |
||
|
4
|
4
4SB-E1311-00-00 Cylinder 1 |
4SB-E1311-00-00 |
US $428.04 |
||
|
4
|
4
4SB-E1631-00-00 Piston (Std) |
4SB-E1631-00-00 |
US $176.96 |
||
|
4
|
4
4SB-E1603-00-00
Piston Ring Set (Std)
|
4SB-E1603-00-00 |
— | ||
|
4
|
4
3VL-E1633-00-00
Pin, Piston
|
3VL-E1633-00-00 |
— | ||
|
4
|
4
93450-11120-00 Circlip |
93450-11120-00 |
from US $1.81 |
||
|
5
|
5
3VL-E1351-00-00 Gasket, Cylinder |
3VL-E1351-00-00 |
from US $9.29 |
||
|
6
|
6
90116-06418-00 Bolt, Stud |
90116-06418-00 |
from US $1.81 |
||
|
7
|
7
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
