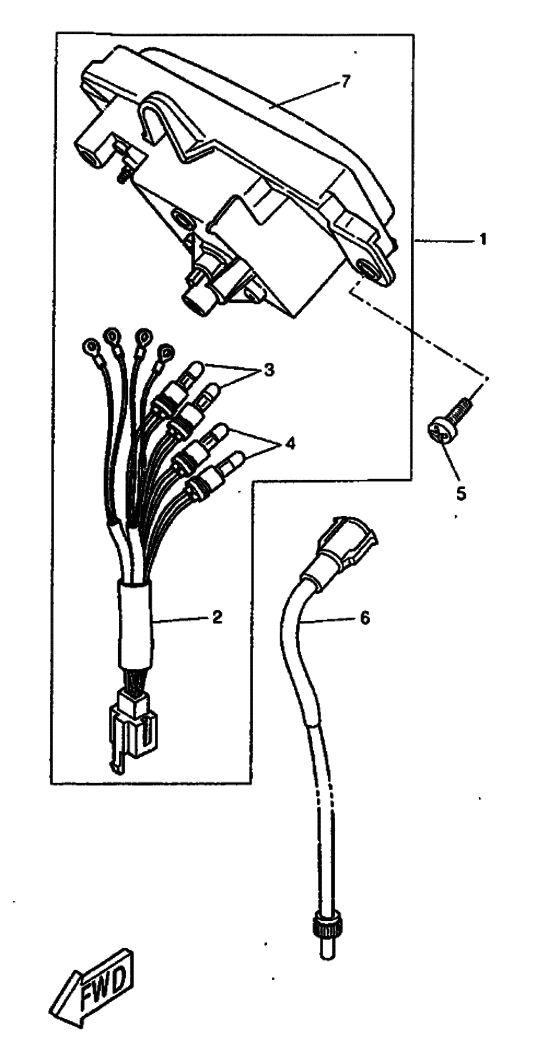

Meter Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1998
- Colour
- Deep Orange Candy 1 (DOC1; 0512)
- Model code
- 4YA4
- Sales region
- Europe (999)
- Engine Capacity
- 50
- Color Variant
- B
- Model
- CW50RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5CC-H3510-00-00
Speedometer Assy
|
5CC-H3510-00-00 |
— | ||
|
2
|
2
4SB-H3509-00-00
Socket Cord Assy
|
4SB-H3509-00-00 |
— | ||
|
3
|
3
4SB-H4347-00-00 BulbBulb (12v-2w) |
4SB-H4347-00-00 |
US $6.66 |
||
|
4
|
4
NJ9-H4744-00-01
Bulb (12V-1.2W)
12V-5W |
NJ9-H4744-00-01 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
12V-5W |
999-99999-99-00 |
— | ||
|
5
|
5
4SB-H353K-00-00
Glass Plate
|
4SB-H353K-00-00 |
— | ||
|
7
|
7
977-07500-20-00
Screw, Tapping
|
977-07500-20-00 |
— | ||
| replacement | |||||
|
7
|
7
90167-05078-00 Screw, Tapping |
90167-05078-00 |
from US $1.56 |
||
|
8
|
8
4SB-H3550-02-00 Speedometer Cable Assy |
4SB-H3550-02-00 |
US $33.58 |
||
| replacement | |||||
|
8
|
8
4SB-H3550-03-00 Speedometer Cable Assy |
4SB-H3550-03-00 |
US $33.58 |
||
|
9
|
9
4YA-H2509-00-00
Wire, Sub Lead
NOT ILLUSTRED |
4YA-H2509-00-00 |
— | ||
