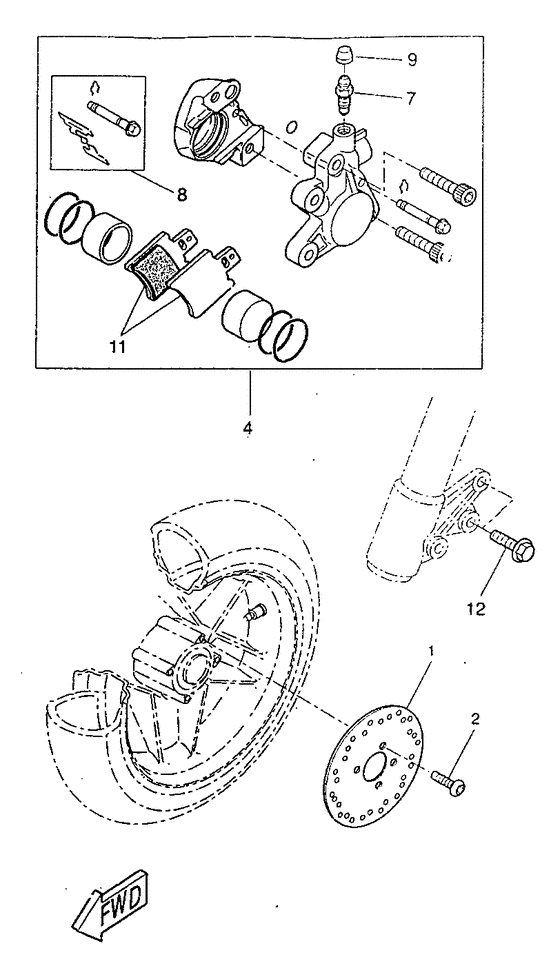

Front brake. caliper Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1998
- Colour
- Black 2 (BL2; 004B)
- Model code
- 4YA4
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-2582T-00-00 Disc, Brake |
4SB-2582T-00-00 |
US $144.11 |
||
|
02
|
02
90111-10X00-00 Bolt, Hex Socket Button |
90111-10X00-00 |
US $14.29 |
||
|
04
|
04
4CU-F580T-20-00 Caliper Assy (Left |
4CU-F580T-20-00 |
US $291.94 |
||
| replacement | |||||
|
04
|
04
5ME-F580T-30-00 Caliper Assy (Left) |
5ME-F580T-30-00 |
US $291.94 |
||
|
07
|
07
4CU-F5824-00-00 Screw, Breed |
4CU-F5824-00-00 |
from US $14.88 |
||
|
08
|
08
4CU-F5919-00-00 Support, Pad Assy |
4CU-F5919-00-00 |
US $29.83 |
||
|
09
|
09
4CU-F5825-00-00 Cap |
4CU-F5825-00-00 |
from US $2.38 |
||
|
11
|
11
4CU-F5811-20-00 Pad, Caliper 2 |
4CU-F5811-20-00 |
US $66.80 |
||
| replacement | |||||
|
11
|
11
5MF-F5811-00-00 Pad, Caliper 2 |
5MF-F5811-00-00 |
US $66.13 |
||
|
12
|
12
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.18 |
||
