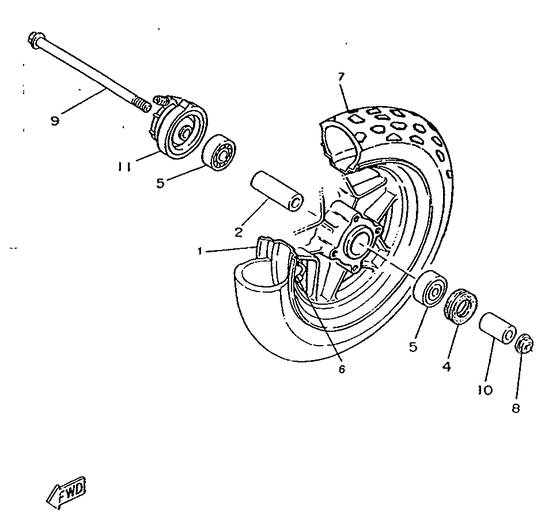

Front wheel Diagram Yamaha CW50 BW'S BUMP
- Year
- 1997
- Colour
- Ink Blue (IKB; 00EX)
- Model code
- 4YD1
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- CW50RSX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4TD-F5168-40-00
Cast Wheel, Front
White grimeca |
4TD-F5168-40-00 |
— | ||
|
02
|
02
4SB-F5117-00-00 Spacer, Bearing |
4SB-F5117-00-00 |
from US $11.48 |
||
|
04
|
04
93106-20001-00 Oil Seal |
93106-20001-00 |
US $6.24 |
||
|
05
|
05
93306-300Y8-00 Bearing |
93306-300Y8-00 |
from US $25.64 |
||
|
06
|
06
3VL-F5170-10-00 Air Valve Assy |
3VL-F5170-10-00 |
from US $21.56 |
||
|
07
|
07
94113-108S1-00
Tire
130/90-10 chen ching |
94113-108S1-00 |
— | ||
|
08
|
08
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
08
|
08
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
09
|
09
486-22141-01-00 Shaft, Pivot |
486-22141-01-00 |
from US $19.84 |
||
|
10
|
10
90387-10079-00 Collar |
90387-10079-00 |
US $15.93 |
||
|
11
|
11
4YB-F5190-00-00 Gear Unit Assy |
4YB-F5190-00-00 |
from US $68.55 |
||
| replacement | |||||
|
11
|
11
4YB-F5190-01-00 Gear Unit Assy |
4YB-F5190-01-00 |
US $107.89 |
||
