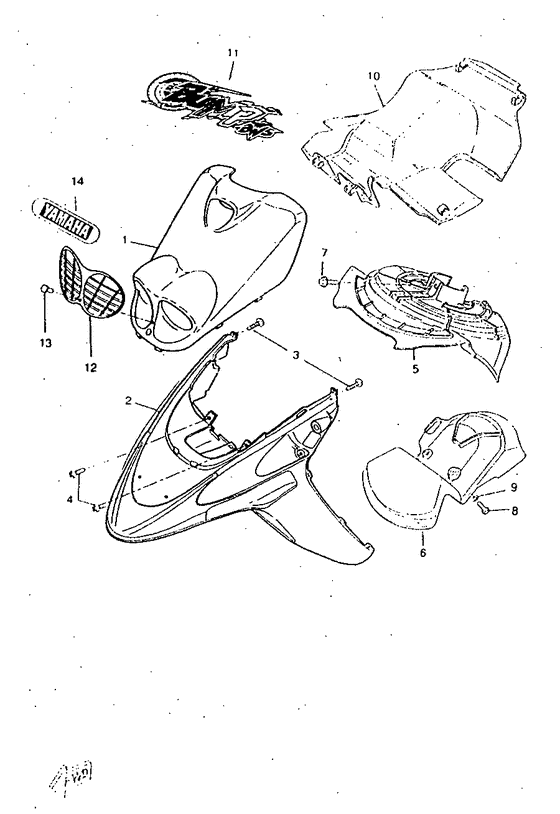

Fender Diagram Yamaha CW50 BW'S BUMP
- Year
- 1997
- Colour
- Ink Blue (IKB; 00EX)
- Model code
- 5AA1
- Sales region
- Portugal (999)
- Engine Capacity
- 50
- Model
- CW50RSX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4YB-F1511-10-00
Fender, Front
Ur ink blue |
4YB-F1511-10-00 |
— | ||
| replacement | |||||
|
01
|
01
4YB-F1511-09-00
Fender Ink Blue
Ur ink blue |
4YB-F1511-09-00 |
— | ||
|
02
|
02
4YB-F152P-00-00
Fr.mud Guard Assy
Ur silky white |
4YB-F152P-00-00 |
— | ||
|
03
|
03
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
03
|
03
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
04
|
04
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.66 |
||
|
05
|
05
4SB-F1552-00-00
Fender, Inner
Ur black |
4SB-F1552-00-00 |
— | ||
| replacement | |||||
|
05
|
05
4SB-F1552-01-00
Fender, Inner
Ur black |
4SB-F1552-01-00 |
— | ||
|
06
|
06
4SB-F1553-00-00
Fender, Inner 2
Ur black |
4SB-F1553-00-00 |
— | ||
|
07
|
07
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
08
|
08
90119-06052-00 Bolt, With Washer |
90119-06052-00 |
from US $1.35 |
||
| replacement | |||||
|
08
|
08
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
09
|
09
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
10
|
10
4SB-F1629-01-00
Guard, Mud
Ur black |
4SB-F1629-01-00 |
— | ||
| replacement | |||||
|
10
|
10
4SB-F1629-02-00
Guard,mud(Pp(Black)
Ur black |
4SB-F1629-02-00 |
— | ||
|
11
|
11
4YC-F1569-00-00
Graphic 1
|
4YC-F1569-00-00 |
— | ||
|
12
|
12
4YB-H4169-00-00
Guard, Headlight
|
4YB-H4169-00-00 |
— | ||
|
13
|
13
4JC-F8387-00-00
Rivet
|
4JC-F8387-00-00 |
— | ||
|
14
|
14
4UP-F152A-20-00
Emblem 3
|
4UP-F152A-20-00 |
— | ||
