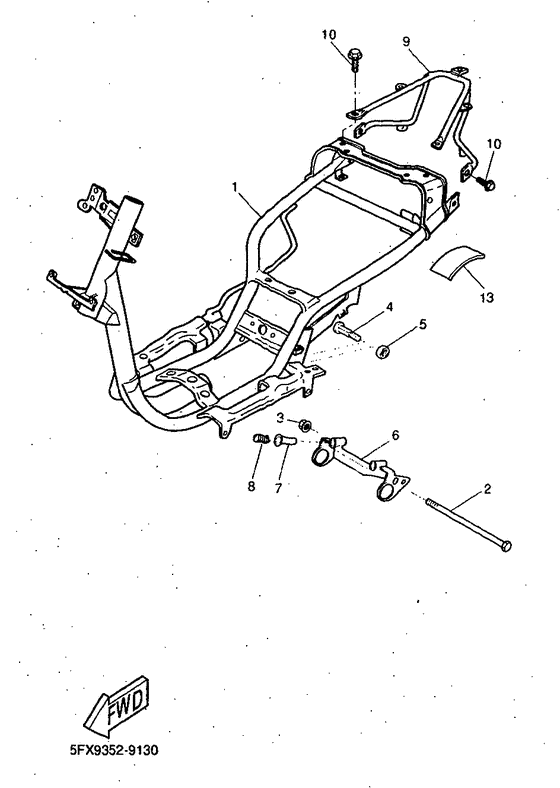

Frame Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1999
- Model code
- 5FX9
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5FX-F1110-00-00
Frame Comp
Ur yb |
5FX-F1110-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5FX-F1110-01-00
Frame Comp
Ur yb |
5FX-F1110-01-00 |
— | ||
|
02
|
02
90105-10297-00 Bolt, Flange |
90105-10297-00 |
from US $10.77 |
||
|
03
|
03
90179-10279-00 Nut |
90179-10279-00 |
from US $1.28 |
||
|
04
|
04
2T4-21481-01-00 Bolt, Engine Mounting 1 |
2T4-21481-01-00 |
from US $5.24 |
||
|
05
|
05
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
06
|
06
5FX-F1410-00-00
Engine Bracket Comp
Ur yb |
5FX-F1410-00-00 |
— | ||
|
07
|
07
2T4-2139X-00-00 Damper |
2T4-2139X-00-00 |
US $1.73 |
||
| replacement | |||||
|
07
|
07
3WG-F139X-00-00 Damper |
3WG-F139X-00-00 |
US $16.46 |
||
|
08
|
08
90501-29517-00 Spring, Compression |
90501-29517-00 |
US $2.83 |
||
| replacement | |||||
|
08
|
08
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
|
09
|
09
4VA-F1232-00-00
Reinforcement, Tail
Ur yb |
4VA-F1232-00-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
13
|
13
4SB-F174X-00-00 Damper |
4SB-F174X-00-00 |
US $11.33 |
||
|
14
|
14
5BK-F1182-00-00
Manufacturer Plate
Non representado |
5BK-F1182-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
Non representado |
999-99999-99-00 |
— | ||
|
15
|
15
90267-32801-00 Rivet, BlindNon representado |
90267-32801-00 |
US $3.12 |
||
