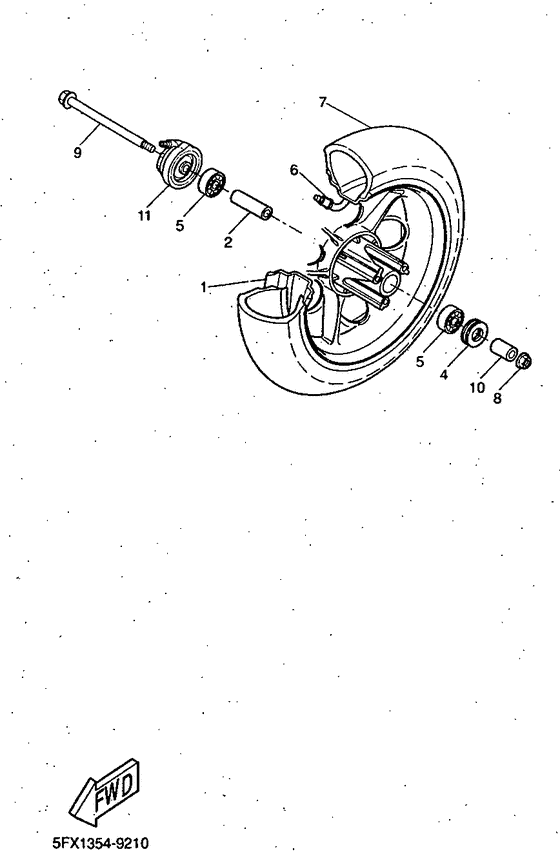

Front wheel Diagram Yamaha CW50 BW'S Next Generation
- Year
- 1999
- Model code
- 5FX9
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- CW50RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5FX-F5168-00-00
Cast Wheel, Front
Ur lynm6 |
5FX-F5168-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
Ur lynm6 |
999-99999-99-00 |
— | ||
|
02
|
02
4SB-F5117-00-00 Spacer, Bearing |
4SB-F5117-00-00 |
from US $11.48 |
||
|
04
|
04
93106-20001-00 Oil Seal |
93106-20001-00 |
US $6.24 |
||
|
05
|
05
93306-300Y8-00 Bearing |
93306-300Y8-00 |
from US $25.64 |
||
|
06
|
06
5BR-F5170-00-00 Air Valve Assy |
5BR-F5170-00-00 |
US $12.75 |
||
|
08
|
08
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
08
|
08
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
09
|
09
5BR-F2141-00-00 Shaft, Pivot |
5BR-F2141-00-00 |
US $20.54 |
||
| replacement | |||||
|
09
|
09
5BR-F2141-10-00 Shaft Pivot |
5BR-F2141-10-00 |
US $20.54 |
||
|
10
|
10
90387-10079-00 Collar |
90387-10079-00 |
US $15.93 |
||
|
11
|
11
4YB-F5190-00-00 Gear Unit Assy |
4YB-F5190-00-00 |
from US $68.55 |
||
| replacement | |||||
|
11
|
11
4YB-F5190-01-00 Gear Unit Assy |
4YB-F5190-01-00 |
US $107.89 |
||
|
12
|
12
4YB-F5138-00-00 Gear, MeterNon representado |
4YB-F5138-00-00 |
US $18.56 |
||
