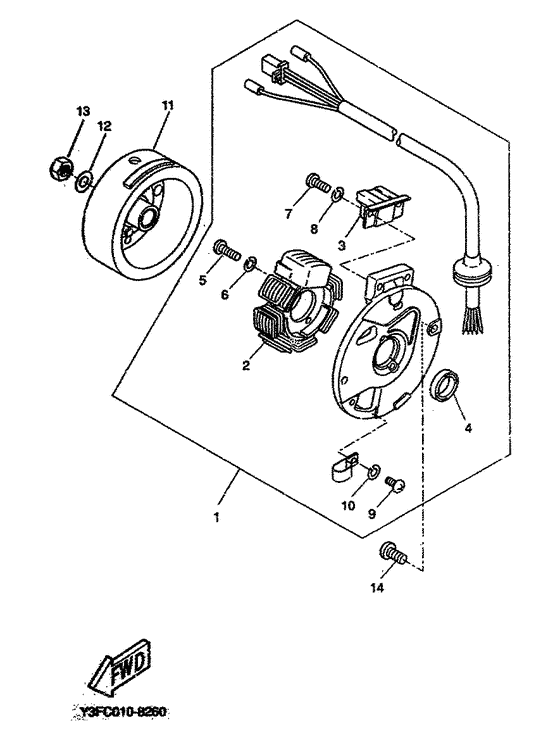

Generator Diagram Yamaha CW50 BW'S
- Year
- 1999
- Model code
- 5HG1
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3ES-85560-01-00 Base Assy |
3ES-85560-01-00 |
US $272.20 |
||
|
02
|
02
3ES-81403-00-00 Stator Comp |
3ES-81403-00-00 |
from US $173.54 |
||
|
03
|
03
2JA-85580-M0-00 Coil, Pulser |
2JA-85580-M0-00 |
US $47.04 |
||
|
04
|
04
93104-19097-00 Oil Seal |
93104-19097-00 |
from US $5.68 |
||
|
05
|
05
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
06
|
06
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
06
|
06
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
07
|
07
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
08
|
08
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
09
|
09
98507-04006-00 Vis, Tete Tronconique |
98507-04006-00 |
US $1.56 |
||
| replacement | |||||
|
09
|
09
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
10
|
10
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
2JA-85550-00-00 Rotor Assy |
2JA-85550-00-00 |
US $97.53 |
||
| replacement | |||||
|
11
|
11
2JA-85550-02-00 Rotor Assy |
2JA-85550-02-00 |
US $80.08 |
||
|
12
|
12
90201-10X02-00 Washer, Plate |
90201-10X02-00 |
US $1.07 |
||
| replacement | |||||
|
12
|
12
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
13
|
13
901-70102-19-00
Nut
|
901-70102-19-00 |
— | ||
| replacement | |||||
|
13
|
13
90170-10011-00 Nut |
90170-10011-00 |
from US $1.52 |
||
|
14
|
14
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
