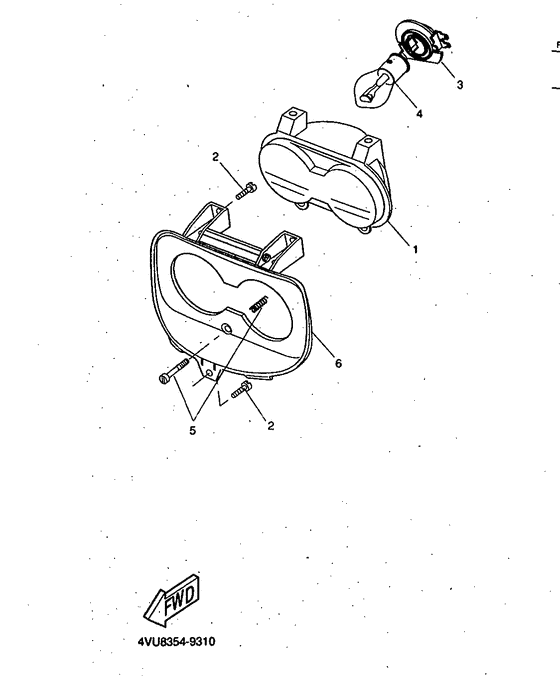

Headlight Diagram Yamaha CW50 BW'S
- Year
- 1999
- Model code
- 5HG1
- Sales region
- Spain (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4VU-H4320-00-00
Lens assy
|
4VU-H4320-00-00 |
— | ||
|
02
|
02
90159-05089-00 Screw, With Washer |
90159-05089-00 |
from US $3.54 |
||
|
03
|
03
4JC-H4340-00-00 Socket Cord Assy 1 |
4JC-H4340-00-00 |
US $36.72 |
||
|
04
|
04
4SB-H4314-00-00 Bulb, Headlight |
4SB-H4314-00-00 |
US $16.43 |
||
|
05
|
05
4VU-W4125-00-00
Jeu vis fixation
|
4VU-W4125-00-00 |
— | ||
|
06
|
06
4VU-H4196-00-00
Cover, socket
|
4VU-H4196-00-00 |
— |
