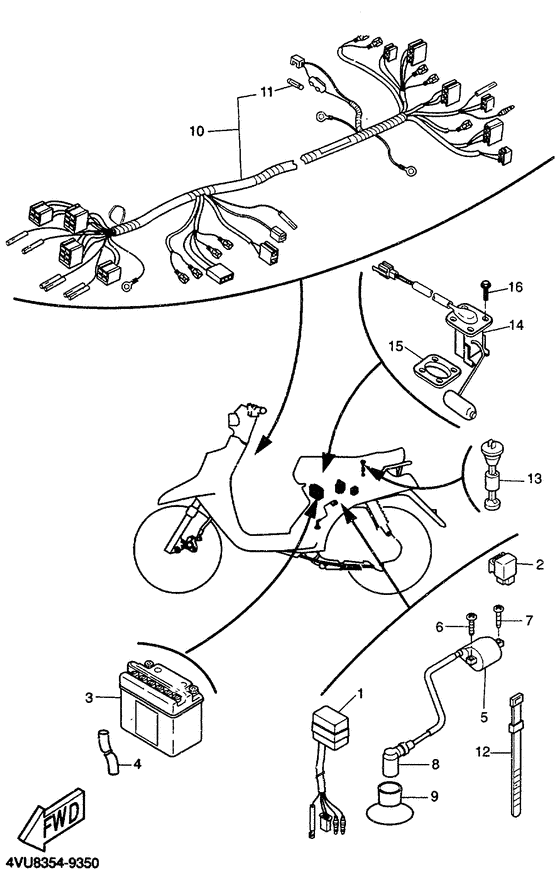

Electrical2 Diagram Yamaha CW50 BW'S
- Year
- 2000
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5HG4
- Sales region
- Portugal (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3KJ-85540-10-00
C.d.i. Unit Assy
|
3KJ-85540-10-00 |
— | ||
| replacement | |||||
|
01
|
01
3KJ-H5540-00-00
Cdi Unit Assy
|
3KJ-H5540-00-00 |
— | ||
|
02
|
02
5DS-H1950-00-00 Relay Assy |
5DS-H1950-00-00 |
US $64.11 |
||
|
03
|
03
4CU-H2110-20-00
Battery Assy
|
4CU-H2110-20-00 |
— | ||
| replacements | |||||
|
03
|
03
9079R-24278-00
Battery (Yb4L-B)
|
9079R-24278-00 |
— | ||
|
03
|
03
CB4-LB000-00-00
12N5.5-3B GS BATTER
|
CB4-LB000-00-00 |
— | ||
|
03
|
03
YB4-LB000-00-00
Bat Yb4L-B Yu
|
YB4-LB000-00-00 |
— | ||
|
03
|
03
4SB-H2110-00-00
Cb4Lb Gs Battery
|
4SB-H2110-00-00 |
— | ||
| replacements | |||||
|
03
|
03
CB4-LB000-00-00
12N5.5-3B GS BATTER
|
CB4-LB000-00-00 |
— | ||
|
03
|
03
9079R-24278-00
Battery (Yb4L-B)
|
9079R-24278-00 |
— | ||
|
03
|
03
38E-82110-02-00
Battery Gm4-3B (Gs)
|
38E-82110-02-00 |
— | ||
|
03
|
03
YB4-LB000-00-00
Bat Yb4L-B Yu
|
YB4-LB000-00-00 |
— | ||
|
04
|
04
4VU-H2112-00-00 Pipe, Breather |
4VU-H2112-00-00 |
US $19.49 |
||
|
05
|
05
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
| replacements | |||||
|
05
|
05
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
05
|
05
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
05
|
05
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
06
|
06
90149-06262-00 Screw |
90149-06262-00 |
from US $1.77 |
||
|
07
|
07
97707-60525-00 Screw, Tapping |
97707-60525-00 |
from US $2.13 |
||
|
08
|
08
3WG-H2370-00-00 Plug Cap Assy |
3WG-H2370-00-00 |
from US $29.04 |
||
| replacement | |||||
|
08
|
08
SPC-LB05F-00-00 Spark Plugcap - Ngk Lb05F |
SPC-LB05F-00-00 |
US $24.28 |
||
|
09
|
09
3WG-H2372-00-00 Seal, Plug Cap |
3WG-H2372-00-00 |
from US $4.53 |
||
|
10
|
10
5HG-H2590-00-00
Wire harness assy
|
5HG-H2590-00-00 |
— | ||
|
11
|
11
27V-82151-00-00 Fuse |
27V-82151-00-00 |
from US $3.68 |
||
|
12
|
12
4VV-H3936-01-00 Band Switch Cord (160X4.5) |
4VV-H3936-01-00 |
US $5.17 |
||
|
12
|
12
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
12
|
12
4VU-H3936-01-00 Band, Switch Cord (95.7X2.5) |
4VU-H3936-01-00 |
from US $1.35 |
||
| replacement | |||||
|
12
|
12
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
13
|
13
3VL-H5720-10-00
Oil Level Gauge Assy
|
3VL-H5720-10-00 |
— | ||
| replacement | |||||
|
13
|
13
53L-85720-10-00 Oil Level Gauge Assy |
53L-85720-10-00 |
from US $32.16 |
||
|
14
|
14
3VL-85752-00-00
Sender Unit Assy
|
3VL-85752-00-00 |
— | ||
| replacement | |||||
|
14
|
14
3VL-H5752-00-00
Sender
|
3VL-H5752-00-00 |
— | ||
|
15
|
15
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $7.07 |
||
|
16
|
16
5AD-H5546-00-00
Band
|
5AD-H5546-00-00 |
— | ||
