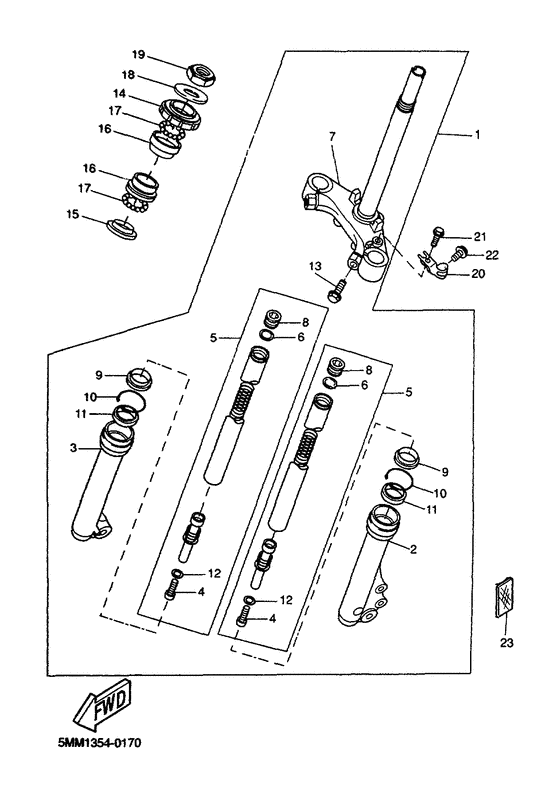

Front fork Diagram Yamaha CW50 BW'S
- Year
- 2001
- Model code
- 5HG9
- Sales region
- Europe (General) (999)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4VU-F3100-10-00 Front Fork Asy |
4VU-F3100-10-00 |
US $937.10 |
||
| replacement | |||||
|
01
|
01
4VU-F3100-20-00 EMBLEM,PROTECTOR |
4VU-F3100-20-00 |
US $581.47 |
||
|
02
|
02
4VU-F3126-20-00 Tube, Outer 1 LeftTube, outer (left) |
4VU-F3126-20-00 |
US $146.72 |
||
|
03
|
03
4VU-F3136-20-00 Tube, Outer 2 RightTube, outer (right) |
4VU-F3136-20-00 |
US $145.73 |
||
|
04
|
04
4VU-F3181-10-00 Bolt, Hexagon Socket Head |
4VU-F3181-10-00 |
US $10.17 |
||
|
05
|
05
4VU-F3110-20-00 Inner Tube Comp. 1 |
4VU-F3110-20-00 |
US $130.50 |
||
|
06
|
06
4VU-F3147-10-00 O-Ring |
4VU-F3147-10-00 |
US $7.94 |
||
|
07
|
07
4VU-F3340-10-00 Under Bracket Comp |
4VU-F3340-10-00 |
US $403 |
||
|
08
|
08
4VU-F3111-10-00
Bolt, Cap
|
4VU-F3111-10-00 |
— | ||
|
09
|
09
4VU-F3144-10-00 Seal, Dust |
4VU-F3144-10-00 |
US $13 |
||
|
10
|
10
4VU-F3156-10-00 Clip, Oil Seal |
4VU-F3156-10-00 |
US $3.67 |
||
|
11
|
11
4VU-F3145-10-00 Oil Seal |
4VU-F3145-10-00 |
US $20.41 |
||
|
12
|
12
4VU-F3165-00-00 Washer, Felt |
4VU-F3165-00-00 |
US $10.33 |
||
|
13
|
13
4VU-F3394-00-00 Bolt, Special |
4VU-F3394-00-00 |
US $4.93 |
||
|
14
|
14
4SB-F3411-01-00
Race, Ball 1
|
4SB-F3411-01-00 |
— | ||
|
15
|
15
4SB-F3414-00-00
Race, Ball 4
|
4SB-F3414-00-00 |
— | ||
|
16
|
16
4SB-F3412-00-00
Race, Ball 2
|
4SB-F3412-00-00 |
— | ||
|
17
|
17
4SB-F3812-00-00
Plane Bearing, Steering
|
4SB-F3812-00-00 |
— | ||
|
18
|
18
4SB-F3427-01-00
Washer
|
4SB-F3427-01-00 |
— | ||
|
19
|
19
4SB-F3453-01-00
Nut, Fitting 1
|
4SB-F3453-01-00 |
— | ||
|
20
|
20
4PA-F5876-00-00 Holder, Brake Hose 2 |
4PA-F5876-00-00 |
US $41.08 |
||
|
21
|
21
3WW-H3327-00-00 Bolt, |
3WW-H3327-00-00 |
US $4.43 |
||
| replacement | |||||
|
21
|
21
90157-05X10-00
Screw, Pan Head
|
90157-05X10-00 |
— | ||
|
22
|
22
90101-06X02-00 Screw H M6-8 |
90101-06X02-00 |
US $1.49 |
||
|
23
|
23
5HE-H5111-00-00 Reflector, Front 1 |
5HE-H5111-00-00 |
US $18.99 |
||
