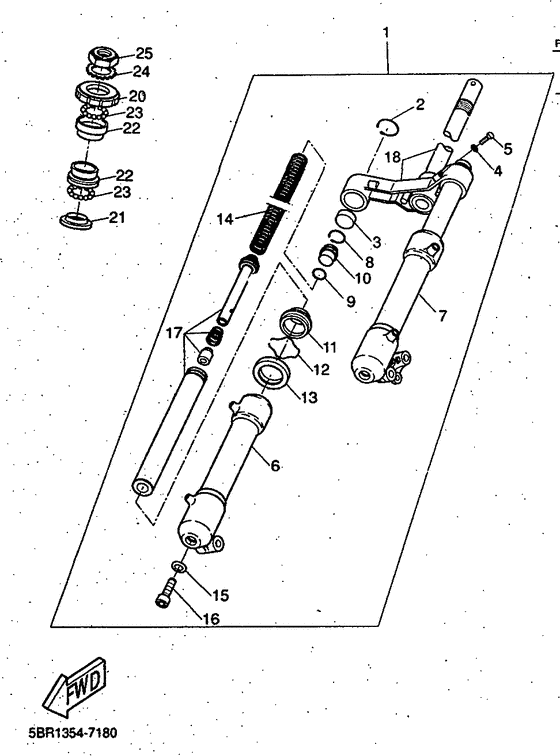

Front fork Diagram Yamaha CW50 BOOSTER
- Year
- 1999
- Model code
- 5HR1
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CW50RSP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4UP-F3100-01-00
Front Fork Assy
|
4UP-F3100-01-00 |
— | ||
| replacements | |||||
|
01
|
01
4UP-F3100-03-00
Front Fork Assy
|
4UP-F3100-03-00 |
— | ||
|
01
|
01
4UP-F3100-02-00
Front Fork Assy
|
4UP-F3100-02-00 |
— | ||
|
02
|
02
4TD-F3153-00-00
Ring, Snap
|
4TD-F3153-00-00 |
— | ||
|
03
|
03
4TD-F3154-00-00
Plug, Inner Tube
|
4TD-F3154-00-00 |
— | ||
|
04
|
04
4TD-F3112-00-00
Washer, Cap
|
4TD-F3112-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
4TD-F3394-00-00
Bolt, Special
|
4TD-F3394-00-00 |
— | ||
|
06
|
06
4UP-F3136-00-00
Tube, Outer (Right)
|
4UP-F3136-00-00 |
— | ||
|
07
|
07
4UP-F3126-00-00
Tube, Outer (Left)
|
4UP-F3126-00-00 |
— | ||
|
08
|
08
4TD-F3183-00-00
Circlip
|
4TD-F3183-00-00 |
— | ||
|
09
|
09
4TD-F3147-00-00
O-Ring
|
4TD-F3147-00-00 |
— | ||
|
10
|
10
4TD-F3111-00-00
Bolt, Cap
|
4TD-F3111-00-00 |
— | ||
|
11
|
11
4TD-F3144-00-00
Seal, Dust
|
4TD-F3144-00-00 |
— | ||
|
12
|
12
4TD-F3156-00-00
Clip, Oil Seal
|
4TD-F3156-00-00 |
— | ||
|
13
|
13
4TD-F3145-00-00
Oil Seal
|
4TD-F3145-00-00 |
— | ||
|
14
|
14
4TD-F3141-00-00
Spring, Front Fork
|
4TD-F3141-00-00 |
— | ||
|
15
|
15
4CU-F3165-00-00
Washer, Felt
|
4CU-F3165-00-00 |
— | ||
|
16
|
16
4TD-F3181-00-00
Bolt, Hexagon Socket Head
|
4TD-F3181-00-00 |
— | ||
|
17
|
17
4TD-F3110-00-00
Inner Tube Comp.1
|
4TD-F3110-00-00 |
— | ||
|
18
|
18
4TD-F3340-01-00
Under Bracket Comp
|
4TD-F3340-01-00 |
— | ||
| replacement | |||||
|
18
|
18
5BR-F3340-02-00
Under Bracket Comp
|
5BR-F3340-02-00 |
— | ||
|
20
|
20
4SB-F3411-01-00
Race, Ball 1
|
4SB-F3411-01-00 |
— | ||
|
21
|
21
4SB-F3414-00-00
Race, Ball 4
|
4SB-F3414-00-00 |
— | ||
|
22
|
22
4SB-F3412-00-00
Race, Ball 2
|
4SB-F3412-00-00 |
— | ||
|
23
|
23
4SB-F3812-00-00
Plane Bearing, Steering
|
4SB-F3812-00-00 |
— | ||
|
24
|
24
4SB-F3427-01-00
Washer
|
4SB-F3427-01-00 |
— | ||
|
25
|
25
4SB-F3453-01-00
Nut, Fitting 1
|
4SB-F3453-01-00 |
— | ||
