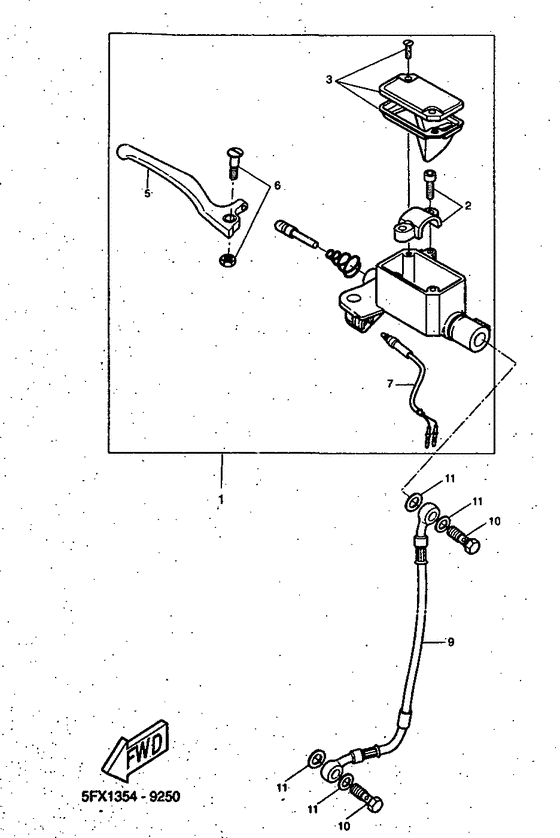

Front master cylinder Diagram Yamaha CW50 BOOSTER
- Year
- 1999
- Model code
- 5HR1
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- CW50RSP
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SB-F583T-10-00
Master Cylinder Assy
|
4SB-F583T-10-00 |
— | ||
| replacement | |||||
|
01
|
01
4SB-F583T-14-00
Master Cylinder
|
4SB-F583T-14-00 |
— | ||
|
02
|
02
4SB-F5867-00-00 Bracket, Master Cylinder |
4SB-F5867-00-00 |
US $29.04 |
||
|
03
|
03
4SB-F5852-00-00 Cap, Reservoir |
4SB-F5852-00-00 |
US $45.87 |
||
|
05
|
05
4SB-H3922-10-00
Lever 2
|
4SB-H3922-10-00 |
— | ||
|
06
|
06
4SB-H3945-00-00
Bolt, Lever
|
4SB-H3945-00-00 |
— | ||
|
07
|
07
5AD-H3980-01-00 Stop Switch Asy |
5AD-H3980-01-00 |
US $34.70 |
||
| replacement | |||||
|
07
|
07
5XL-H3980-00-00 Front Stop Switch |
5XL-H3980-00-00 |
US $36.95 |
||
|
09
|
09
5HR-F5872-00-00
Hose, brake 1
|
5HR-F5872-00-00 |
— | ||
|
10
|
10
90401-10X01-00 Bolt, Union |
90401-10X01-00 |
US $7.22 |
||
|
11
|
11
90201-10X03-00 Washer, Plain |
90201-10X03-00 |
from US $4.68 |
||
