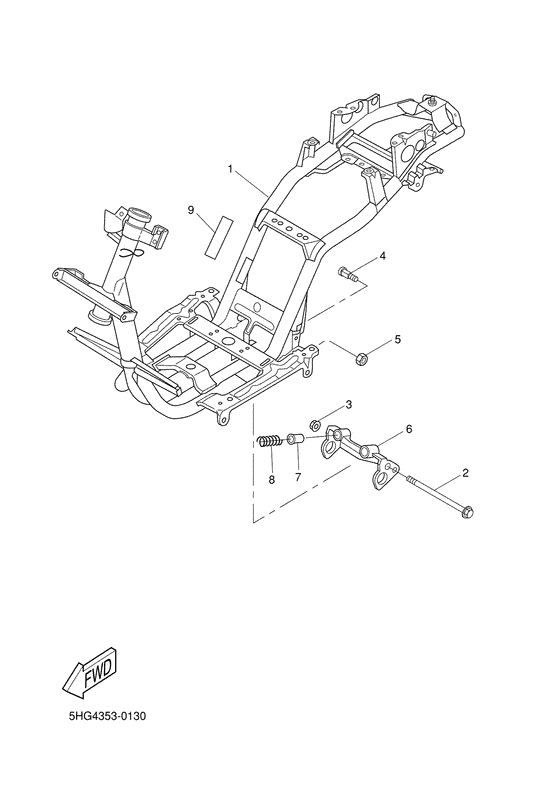

Frame Diagram Yamaha CW50 ZUMA
- Year
- 2001
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5LU2
- Sales region
- USA (010)
- Engine Capacity
- 50
- Model
- CW50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5LU-F1110-00-00 Frame CompYamaha black |
5LU-F1110-00-00 |
US $943.54 |
||
|
02
|
02
90105-10063-00 Bolt, Flange |
90105-10063-00 |
from US $9.21 |
||
|
03
|
03
90179-10279-00 Nut |
90179-10279-00 |
from US $1.28 |
||
|
04
|
04
2T4-21481-01-00 Bolt, Engine Mounting 1 |
2T4-21481-01-00 |
from US $5.24 |
||
|
05
|
05
95617-10100-00 Nut, U |
95617-10100-00 |
from US $4.11 |
||
|
06
|
06
3VL-F1410-11-00
Engine Bracket Comp
Ur |
3VL-F1410-11-00 |
— | ||
|
07
|
07
2T4-2139X-00-00 Damper |
2T4-2139X-00-00 |
US $1.73 |
||
| replacement | |||||
|
07
|
07
3WG-F139X-00-00 Damper |
3WG-F139X-00-00 |
US $16.46 |
||
|
08
|
08
905-01290-K2-00 Spring, Compression |
905-01290-K2-00 |
US $2.83 |
||
|
09
|
09
3MX-21568-00-00
Label, Warning
|
3MX-21568-00-00 |
— | ||
