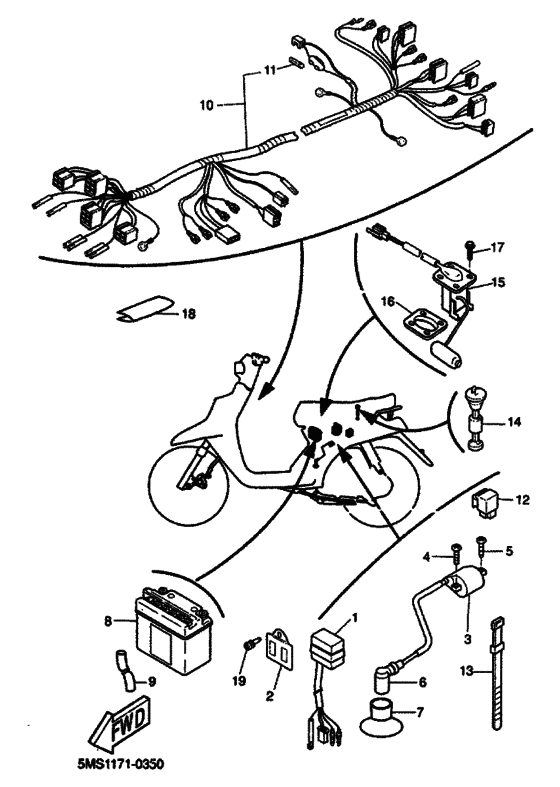

Electrical 2 Diagram Yamaha CW50 BW'S
- Year
- 2000
- Colour
- Light Gray Metallic 2 (LGM2; 0124)
- Model code
- 5MS1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3KJ-85540-10-00
C.d.i. Unit Assy
|
3KJ-85540-10-00 |
— | ||
| replacement | |||||
|
1
|
1
3KJ-H5540-00-00
Cdi Unit Assy
|
3KJ-H5540-00-00 |
— | ||
|
2
|
2
3WW-H553A-00-00
Stay Unit
|
3WW-H553A-00-00 |
— | ||
|
3
|
3
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
| replacements | |||||
|
3
|
3
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
3
|
3
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
3
|
3
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $36.70 |
||
|
4
|
4
90149-06262-00 Screw |
90149-06262-00 |
from US $1.77 |
||
|
5
|
5
97707-60525-00 Screw, Tapping |
97707-60525-00 |
from US $2.13 |
||
|
6
|
6
3WG-H2370-00-00 Plug Cap Assy |
3WG-H2370-00-00 |
from US $29.04 |
||
| replacement | |||||
|
6
|
6
SPC-LB05F-00-00 Spark Plugcap - Ngk Lb05F |
SPC-LB05F-00-00 |
US $24.28 |
||
|
7
|
7
3WG-H2372-00-00 Seal, Plug Cap |
3WG-H2372-00-00 |
from US $4.53 |
||
|
8
|
8
4CU-H2110-20-00
Battery Assy
|
4CU-H2110-20-00 |
— | ||
| replacements | |||||
|
8
|
8
9079R-24278-00
Battery (Yb4L-B)
|
9079R-24278-00 |
— | ||
|
8
|
8
CB4-LB000-00-00
12N5.5-3B GS BATTER
|
CB4-LB000-00-00 |
— | ||
|
8
|
8
YB4-LB000-00-00
Bat Yb4L-B Yu
|
YB4-LB000-00-00 |
— | ||
|
8
|
8
4SB-H2110-00-00
Cb4Lb Gs Battery
|
4SB-H2110-00-00 |
— | ||
| replacements | |||||
|
8
|
8
CB4-LB000-00-00
12N5.5-3B GS BATTER
|
CB4-LB000-00-00 |
— | ||
|
8
|
8
9079R-24278-00
Battery (Yb4L-B)
|
9079R-24278-00 |
— | ||
|
8
|
8
38E-82110-02-00
Battery Gm4-3B (Gs)
|
38E-82110-02-00 |
— | ||
|
8
|
8
YB4-LB000-00-00
Bat Yb4L-B Yu
|
YB4-LB000-00-00 |
— | ||
|
9
|
9
90445-083F2-00 Hose (L620) |
90445-083F2-00 |
from US $10.91 |
||
| replacement | |||||
|
9
|
9
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.42 |
||
|
10
|
10
4UY-82590-00-00 Wire Harness Assy |
4UY-82590-00-00 |
US $225 |
||
|
11
|
11
27V-82151-00-00 Fuse |
27V-82151-00-00 |
from US $3.68 |
||
|
12
|
12
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $34.68 |
||
|
13
|
13
4VV-H3936-01-00 Band Switch Cord (160X4.5) |
4VV-H3936-01-00 |
US $5.17 |
||
|
13
|
13
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
13
|
13
4VU-H3936-01-00 Band, Switch Cord (95.7X2.5) |
4VU-H3936-01-00 |
from US $1.35 |
||
| replacement | |||||
|
13
|
13
4KH-H3936-01-00 Band Switch Cord (249X4.8) |
4KH-H3936-01-00 |
from US $3.68 |
||
|
14
|
14
3VL-H5720-10-00
Oil Level Gauge Assy
|
3VL-H5720-10-00 |
— | ||
| replacement | |||||
|
14
|
14
53L-85720-10-00 Oil Level Gauge Assy |
53L-85720-10-00 |
from US $32.16 |
||
|
15
|
15
3VL-85752-00-00 Sender Unit AssySender unit assy, fuel meter |
3VL-85752-00-00 |
US $55.64 |
||
| replacement | |||||
|
15
|
15
3VL-H5752-00-00
Sender
|
3VL-H5752-00-00 |
— | ||
|
16
|
16
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $5.81 |
||
|
17
|
17
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
|
18
|
18
4PA-H3836-00-00 Band |
4PA-H3836-00-00 |
US $12.13 |
||
|
19
|
19
97607-06220-00 Screw, With Washer |
97607-06220-00 |
from US $1.42 |
||
