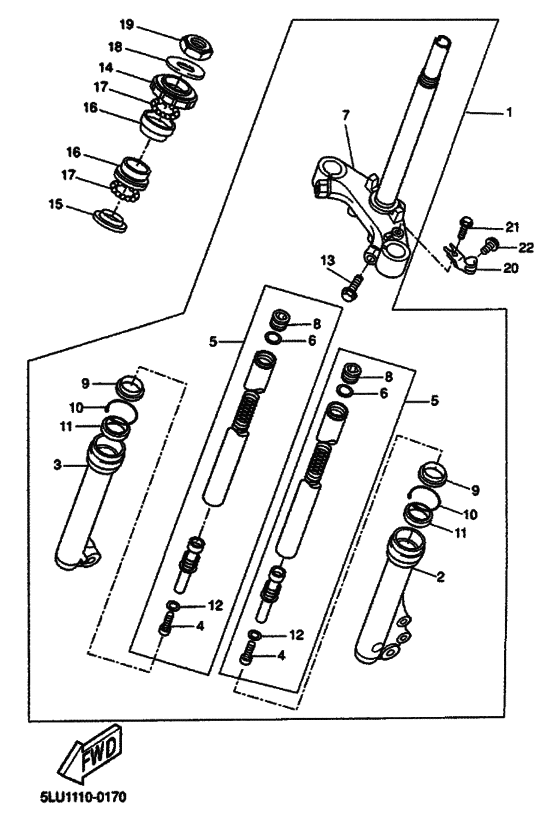

Front fork Diagram Yamaha CW50 BW'S
- Year
- 2000
- Colour
- Light Gray Metallic 2 (LGM2; 0124)
- Model code
- 5MS1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4VU-F3100-00-00
Front Fork Assy
|
4VU-F3100-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
4VU-F3126-10-00 Tube, Outer 1 LeftTube, outer (left) |
4VU-F3126-10-00 |
US $165.20 |
||
|
3
|
3
4VU-F3136-10-00 Tube, Outer 2 RightTube, outer (right) |
4VU-F3136-10-00 |
US $233.41 |
||
|
4
|
4
4VU-F3181-00-00
Bolt, Hexagon Socket Head
|
4VU-F3181-00-00 |
— | ||
|
5
|
5
4VU-F3110-10-00 Inner Tube Comp. 1 |
4VU-F3110-10-00 |
US $123.03 |
||
|
6
|
6
4VU-F3147-00-00 O-Ring |
4VU-F3147-00-00 |
US $9.79 |
||
|
7
|
7
4VU-F3340-00-00
Under Bracket Comp
|
4VU-F3340-00-00 |
— | ||
|
8
|
8
4VU-F3111-00-00 Bolt, Cap |
4VU-F3111-00-00 |
US $6.28 |
||
|
9
|
9
4VU-F3144-00-00
Seal, Dust
|
4VU-F3144-00-00 |
— | ||
|
10
|
10
4VU-F3156-00-00 Clip, Oil Seal |
4VU-F3156-00-00 |
US $2.57 |
||
|
11
|
11
4VU-F3145-00-00
Oil Seal
|
4VU-F3145-00-00 |
— | ||
|
12
|
12
4VU-F3165-00-00 Washer, Felt |
4VU-F3165-00-00 |
US $10.33 |
||
|
13
|
13
4VU-F3394-00-00 Bolt, Special |
4VU-F3394-00-00 |
US $4.93 |
||
|
14
|
14
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $8.78 |
||
| replacement | |||||
|
14
|
14
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $6.40 |
||
|
15
|
15
22F-23414-01-00 Race, Ball 4 |
22F-23414-01-00 |
from US $8.22 |
||
| replacement | |||||
|
15
|
15
BP2-23414-00-00 Race, Ball |
BP2-23414-00-00 |
US $20.02 |
||
|
16
|
16
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $7.93 |
||
| replacement | |||||
|
16
|
16
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $7.93 |
||
|
17
|
17
93503-16003-00 Ball |
93503-16003-00 |
from US $1.35 |
||
|
18
|
18
122-23416-00-00 Cover, Ball Race 2 |
122-23416-00-00 |
from US $2.69 |
||
|
19
|
19
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
19
|
19
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.39 |
||
|
19
|
19
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
20
|
20
4PA-F5876-00-00 Holder, Brake Hose 2 |
4PA-F5876-00-00 |
US $41.08 |
||
|
21
|
21
3WW-H3327-00-00 Bolt, |
3WW-H3327-00-00 |
US $4.43 |
||
| replacement | |||||
|
21
|
21
90157-05X10-00
Screw, Pan Head
|
90157-05X10-00 |
— | ||
|
22
|
22
90101-06X02-00 Screw H M6-8 |
90101-06X02-00 |
US $1.49 |
||
