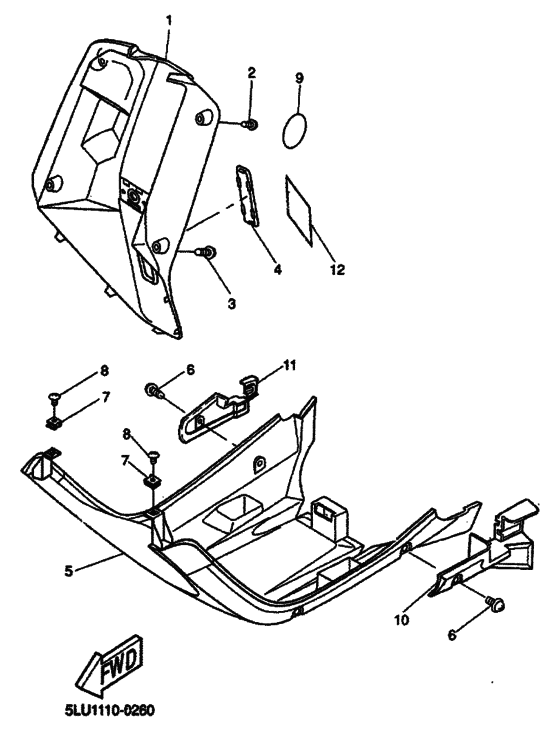

Leg shield Diagram Yamaha CW50 BW'S
- Year
- 2000
- Colour
- Light Gray Metallic 2 (LGM2; 0124)
- Model code
- 5MS1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VL-F8311-10-00 Leg Shield 1Leg shield 1 black |
3VL-F8311-10-00 |
US $256.61 |
||
| replacement | |||||
|
1
|
1
3VL-F8311-40-33 Leg Shield Yb |
3VL-F8311-40-33 |
US $256.61 |
||
|
2
|
2
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
3
|
3
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
4
|
4
3WV-F8349-10-00 Cap |
3WV-F8349-10-00 |
from US $8.08 |
||
|
5
|
5
4CA-F8385-10-00 Cover, Under |
4CA-F8385-10-00 |
US $117.38 |
||
|
6
|
6
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
7
|
7
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.36 |
||
|
8
|
8
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
9
|
9
3VL-F8315-10-00 Emblem |
3VL-F8315-10-00 |
US $4.14 |
||
|
10
|
10
3MX-27486-20-00 Cover 1 |
3MX-27486-20-00 |
US $42.48 |
||
|
11
|
11
3MX-27487-20-00 Cover 2 |
3MX-27487-20-00 |
US $42.48 |
||
|
12
|
12
4RW-F1186-10-00
Plate, Permit
|
4RW-F1186-10-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
3MX-21668-00-00
Label, Tire
|
3MX-21668-00-00 |
— | ||
|
12
|
12
3MX-21668-11-00
Label, Tire
|
3MX-21668-11-00 |
— | ||
|
12
|
12
4RW-H2377-00-00
Label
|
4RW-H2377-00-00 |
— | ||
