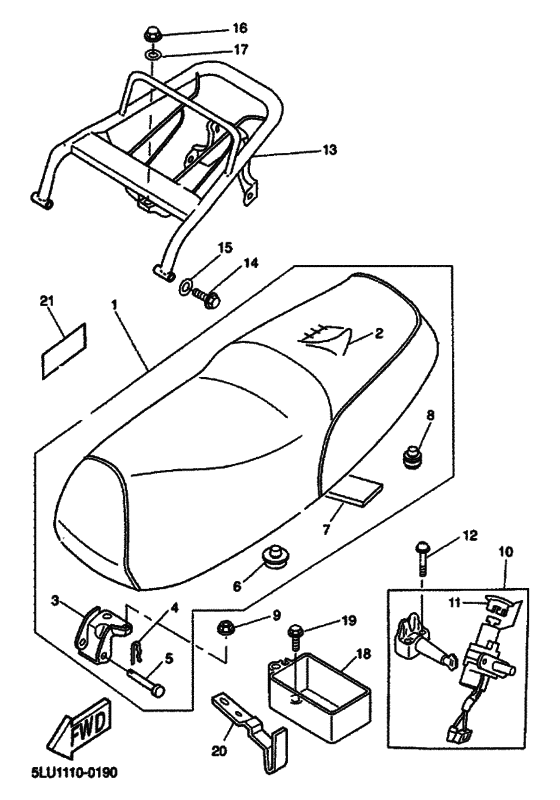

Seat Diagram Yamaha CW50 BW'S
- Year
- 2000
- Colour
- Light Gray Metallic 2 (LGM2; 0124)
- Model code
- 5MS1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4PB-F4730-41-00
Double Seat Assy
|
4PB-F4730-41-00 |
— | ||
|
2
|
2
4PB-F4731-41-00
Cover, Seat
|
4PB-F4731-41-00 |
— | ||
|
3
|
3
3VL-F4726-00-00
Hinge, Seat
|
3VL-F4726-00-00 |
— | ||
|
4
|
4
3VL-F4623-00-00 Pin 1 |
3VL-F4623-00-00 |
US $2.23 |
||
|
5
|
5
3VL-F4572-00-00 Shaft, Fuel Charge |
3VL-F4572-00-00 |
US $11.39 |
||
|
6
|
6
3VL-F4741-00-00 Pad, Seat |
3VL-F4741-00-00 |
from US $8.08 |
||
|
7
|
7
3VL-F4737-00-00
Damper, Seat
|
3VL-F4737-00-00 |
— | ||
|
8
|
8
3VL-F4741-10-00 Pad, Seat |
3VL-F4741-10-00 |
from US $4.96 |
||
|
9
|
9
90179-06X00-00 Nut |
90179-06X00-00 |
from US $9.92 |
||
|
10
|
10
5JH-H2021-00-00 Main,switch+Seat Lock Assy |
5JH-H2021-00-00 |
US $250.51 |
||
|
11
|
11
4VV-H2532-00-00 Cap |
4VV-H2532-00-00 |
from US $7.64 |
||
| replacement | |||||
|
11
|
11
1S0-H2552-00-00 Cap, Switch |
1S0-H2552-00-00 |
US $10.76 |
||
|
12
|
12
901-59060-64-00 Screw, With Washer |
901-59060-64-00 |
from US $2.69 |
||
|
13
|
13
4CA-F4842-10-33
Carrier, Rear
|
4CA-F4842-10-33 |
— | ||
|
14
|
14
950-24080-55-00 Bolt, Flange (Small Head) |
950-24080-55-00 |
from US $1.70 |
||
|
15
|
15
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
16
|
16
90176-08068-00 Nut, Crown |
90176-08068-00 |
from US $2.55 |
||
|
17
|
17
90201-08326-00 Washer (853) |
90201-08326-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
90201-08877-00 Washer (853) |
90201-08877-00 |
from US $1.28 |
||
|
18
|
18
3VL-F1171-00-00 Box, Tool |
3VL-F1171-00-00 |
US $14.33 |
||
|
19
|
19
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
20
|
20
3VL-F1398-00-00 Hanger, Helmet |
3VL-F1398-00-00 |
US $163.60 |
||
|
21
|
21
3MX-24875-A0-00 Label 1 |
3MX-24875-A0-00 |
from US $1.84 |
||
|
21
|
21
3MX-24875-B0-00 Label 1 |
3MX-24875-B0-00 |
US $2.83 |
||
|
21
|
21
3TB-24877-00-00 Label, Caution |
3TB-24877-00-00 |
US $4.34 |
||
|
21
|
21
3TB-24877-10-00
Label, Caution
|
3TB-24877-10-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
3JJ-28446-A0-00 Label, Caution |
3JJ-28446-A0-00 |
from US $4.39 |
||
| replacement | |||||
|
21
|
21
3JJ-28446-A1-00 Label, Caution |
3JJ-28446-A1-00 |
from US $4.39 |
||
|
21
|
21
3JJ-28446-B0-00 Label, Caution |
3JJ-28446-B0-00 |
US $4.39 |
||
|
21
|
21
48H-2415A-00-00
Label, Caution
|
48H-2415A-00-00 |
— | ||
| replacement | |||||
|
21
|
21
5JJ-2415A-00-00
Label, Caution
|
5JJ-2415A-00-00 |
— | ||
