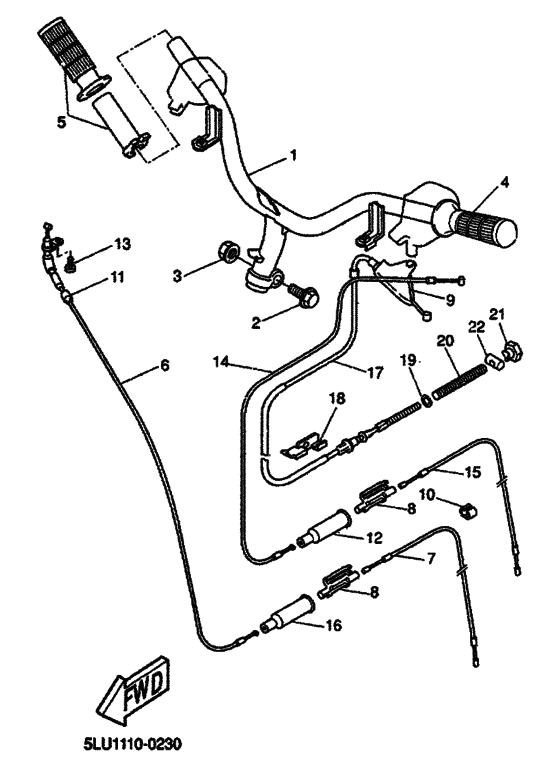

Steering handle & cable Diagram Yamaha CW50 BW'S
- Year
- 2000
- Colour
- Light Gray Metallic 2 (LGM2; 0124)
- Model code
- 5MS1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4RD-F6110-01-00 Handle Comp |
4RD-F6110-01-00 |
US $232.29 |
||
|
2
|
2
90105-10036-00 Bolt, Flange |
90105-10036-00 |
from US $4.25 |
||
|
3
|
3
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
| replacement | |||||
|
3
|
3
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
4
|
4
3VL-F6241-00-00 Grip |
3VL-F6241-00-00 |
US $14.42 |
||
|
5
|
5
3VL-F6240-00-00
Grip Assy
|
3VL-F6240-00-00 |
— | ||
|
6
|
6
4UY-F6311-00-00 Cable, Throttle 1 |
4UY-F6311-00-00 |
from US $34.13 |
||
|
7
|
7
4UY-F6312-00-00 Cable, Throttle 2 |
4UY-F6312-00-00 |
from US $35.44 |
||
|
8
|
8
3VL-F6261-00-00 Connector, Cable |
3VL-F6261-00-00 |
from US $12.47 |
||
|
9
|
9
3VL-F6316-00-00
Boot, Throttle Cable
|
3VL-F6316-00-00 |
— | ||
|
10
|
10
90468-15009-00 Clip |
90468-15009-00 |
from US $2.69 |
||
|
11
|
11
3VL-F6262-00-00 Cap, Cable Connector |
3VL-F6262-00-00 |
from US $9.63 |
||
|
12
|
12
3WG-F6329-00-00 Cap, Rubber |
3WG-F6329-00-00 |
from US $9.67 |
||
|
13
|
13
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
14
|
14
3VL-F6331-00-00 Cable, Starter 1 |
3VL-F6331-00-00 |
US $18.72 |
||
|
15
|
15
3VL-F6334-02-00 Cable, Starter 2 |
3VL-F6334-02-00 |
from US $32.11 |
||
|
16
|
16
3WG-F6329-00-00 Cap, Rubber |
3WG-F6329-00-00 |
from US $9.67 |
||
|
17
|
17
3VL-F6351-00-00 Cable, Brake |
3VL-F6351-00-00 |
US $110.41 |
||
|
18
|
18
4SB-F6475-00-00 Holder |
4SB-F6475-00-00 |
US $18.18 |
||
| replacement | |||||
|
18
|
18
5WK-F6131-00-00 Guide Wire |
5WK-F6131-00-00 |
US $18.18 |
||
|
19
|
19
90202-08175-00 Washer, Plate |
90202-08175-00 |
from US $1.98 |
||
|
20
|
20
90501-122E1-00 Spring, Compression |
90501-122E1-00 |
from US $1.36 |
||
|
21
|
21
90179-06411-00 Nut |
90179-06411-00 |
from US $1.36 |
||
|
22
|
22
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
