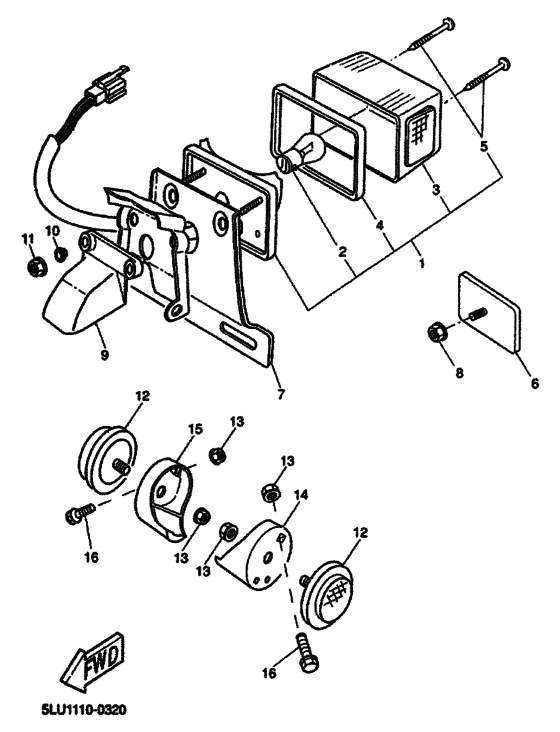

Taillight Diagram Yamaha CW50 BW'S
- Year
- 2000
- Colour
- Light Gray Metallic 2 (LGM2; 0124)
- Model code
- 5MS1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- CW50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2EK-84710-00-00 Taillight Unit Assy |
2EK-84710-00-00 |
US $141.71 |
||
|
2
|
2
34X-84714-00-00 Bulb (12V-21/5W) |
34X-84714-00-00 |
from US $4.96 |
||
| replacement | |||||
|
2
|
2
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $4.96 |
||
|
3
|
3
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $44.69 |
||
|
4
|
4
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
4
|
4
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
5
|
5
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
| replacement | |||||
|
5
|
5
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
6
|
6
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.78 |
||
|
7
|
7
3ES-84751-00-00 Bracket, Licence |
3ES-84751-00-00 |
US $64.12 |
||
|
8
|
8
90179-05X00-00
Nut
|
90179-05X00-00 |
— | ||
|
9
|
9
3L8-84544-00-00 Cover |
3L8-84544-00-00 |
from US $2.94 |
||
|
10
|
10
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
10
|
10
90387-06857-00 Collar |
90387-06857-00 |
from US $1.42 |
||
|
11
|
11
90179-06X00-00 Nut |
90179-06X00-00 |
from US $9.92 |
||
|
12
|
12
2EK-85111-00-00 Reflector, Front 1 |
2EK-85111-00-00 |
from US $6.40 |
||
|
13
|
13
90179-05X00-00
Nut
|
90179-05X00-00 |
— | ||
|
14
|
14
3ES-85127-50-00 Base, Reflector |
3ES-85127-50-00 |
US $25.58 |
||
|
15
|
15
3ES-85137-50-00
Base, Reflector
|
3ES-85137-50-00 |
— | ||
|
16
|
16
90101-05579-00 Bolt |
90101-05579-00 |
US $1.04 |
||
