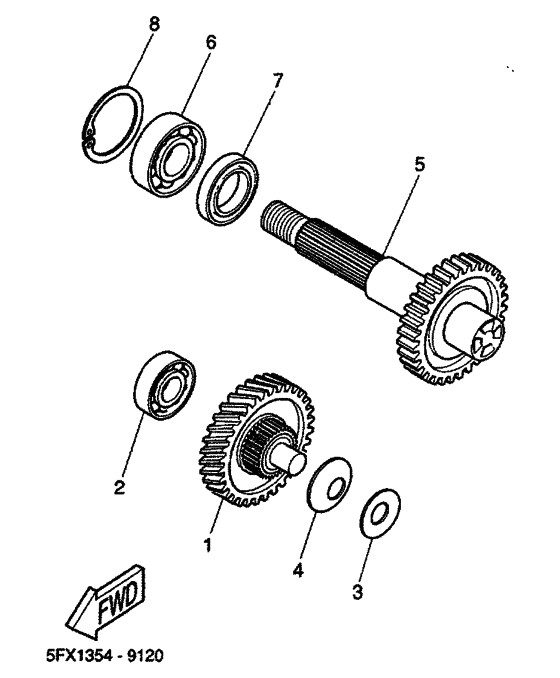

Transmission Diagram Yamaha CW50 BW'S
- Year
- 2000
- Colour
- Light Gray Metallic 2 (LGM2; 0124)
- Model code
- 5MS1
- Sales region
- Europe (010)
- Engine Capacity
- 50
- Color Variant
- C
- Model
- CW50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4SB-E7410-00-00 Main Axle Comp |
4SB-E7410-00-00 |
from US $161.65 |
||
|
2
|
2
93306-20009-00 Bearing (3R0) |
93306-20009-00 |
from US $12.89 |
||
|
3
|
3
90201-140G5-00 Washer, Plate |
90201-140G5-00 |
from US $6.66 |
||
|
4
|
4
90208-14047-00 Washer, Conical Spring |
90208-14047-00 |
from US $3.54 |
||
|
5
|
5
4SB-E7420-00-00 Drive Axle Assy |
4SB-E7420-00-00 |
US $242.64 |
||
| replacement | |||||
|
5
|
5
2AD-E7420-10-00
Drive Axle Assy
|
2AD-E7420-10-00 |
— | ||
|
6
|
6
93306-203YF-00 Bearing |
93306-203YF-00 |
from US $41.59 |
||
| replacement | |||||
|
6
|
6
933-06253-X7-00 Bearing |
933-06253-X7-00 |
from US $40.19 |
||
|
7
|
7
93102-22897-00 Oil Seal(1Jy) |
93102-22897-00 |
from US $8.64 |
||
|
8
|
8
93420-40064-00 Circlip |
93420-40064-00 |
from US $5.09 |
||
